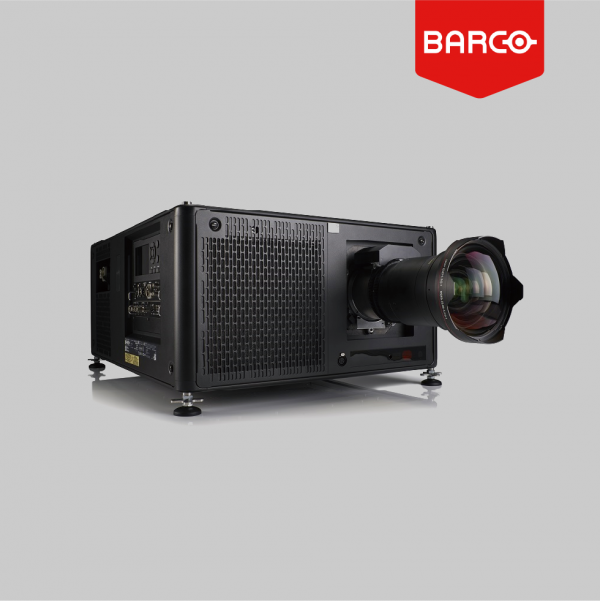

Barco UDXW32

  • Reduce costs with laser projection
  • Faster processing for brighter images
Basic Specifications

Projector Type:WUXGA 3-Chip DLP Digital Projector
Resolution ratio:1,920x1,200
Contrast ratio:2200:1,20000:1
Projected ratio:TLD+ 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Screen Ratio:16:10,16:9、4:3, or auto-adapt to signal source ratio
Dimensions:660x830x350mm
Light Source:Red and blue laser with inorganic phosphor
Life:20000 h
Weight:92.0kg
Work Temperature:0 to 40°C
Storage temperature:-10 to 60°C
Certification:Compliant with UL60950-1 and EN60950-1 standards; meets FCC Part 15 Class A, CE EN55032 Class standards, and RoHS regulations
Accessories:Power Cord, Wireless/XLR Wired Reinforced Remote Controller
