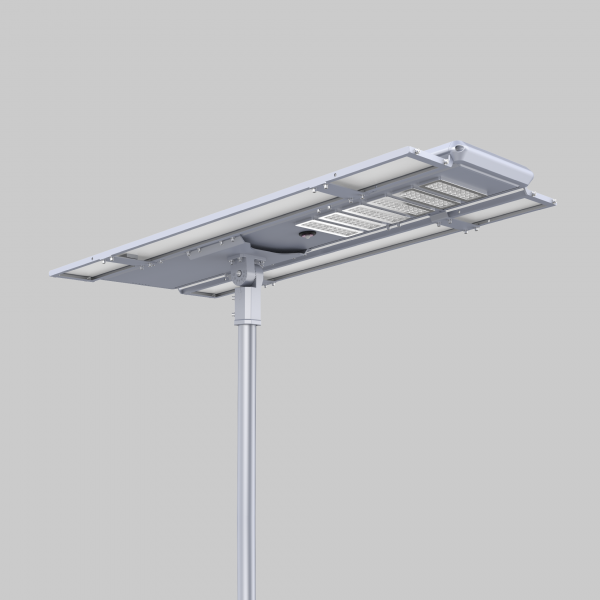

EXC-CR-Z01

Segmented dimming and morning bright design, working time 0 ~ 15 hours can be set, power 0% ~ 100% can be set;; -Segmented dimming and morning bright design, working time 0 ~ 15 hours can be set, power 0% ~ 100% can be set.
Extremely low dormant current, convenient for long-distance transportation and storage.
High precision digital boost constant current control algorithm, high efficiency and high constant current precision, make the battery utilization time longer; -Metal case, IP65 waterproof.
Metal shell, IP65 waterproof grade, can be used in various harsh environments.
Branded A-class lithium battery, the use of cycle life ≧ 2000 times; -High-efficiency single crystal silicon chip, the life of the battery is more than 2000 times.
High-efficiency monocrystalline silicon wafer, life expectancy ≧ 25 years.

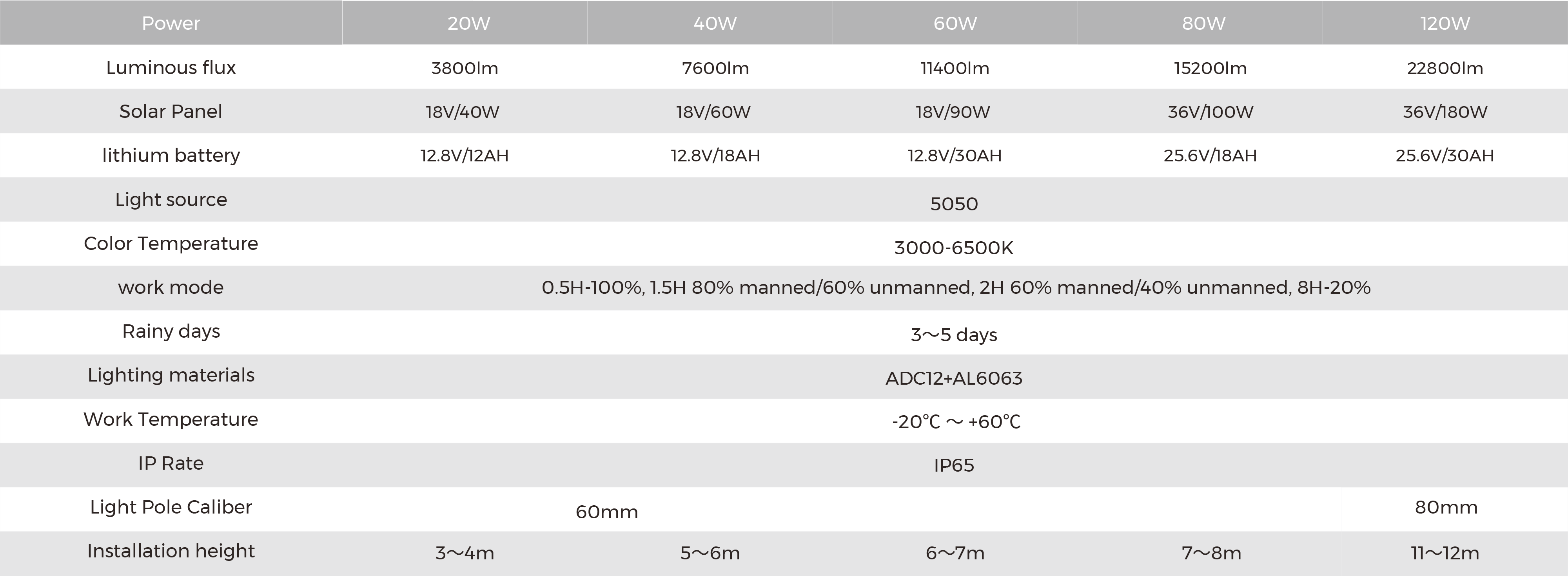

Basic Specifications

Power：20W/40W/60W/80W/120W
Luminous flux：3800lm/7600lm/11400lm/15200lm/22800lm
Solar Panel：18V/40W、18V/60W、18V/90W、36V/100W、36V/180W
lithium battery：12.8V/12AH、12.8V/18AH、12.8V/30AH、25.6V/18AH、25.6V/30AH
Light Source：5050
Color：3000-6500K
Work mode：0.5H-100%,1.5H somebody 80%/nobody60%,2Hsomebody60%/nobody40%,8H-20%
Rainy days：3~5days
Material：ADC12+AL6063
Work Temperature：-20℃ ～ +60℃
IP Rating：IP65
Light Pole Caliber：60mm/ 80mm
Installation height：3～4m/5～6m/6～7m/7～8m/11~12m

Resources

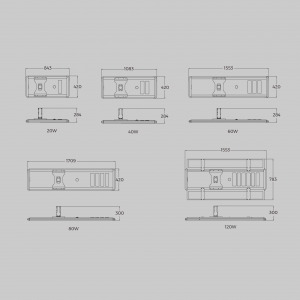

Specification lES File CAD Drawing
