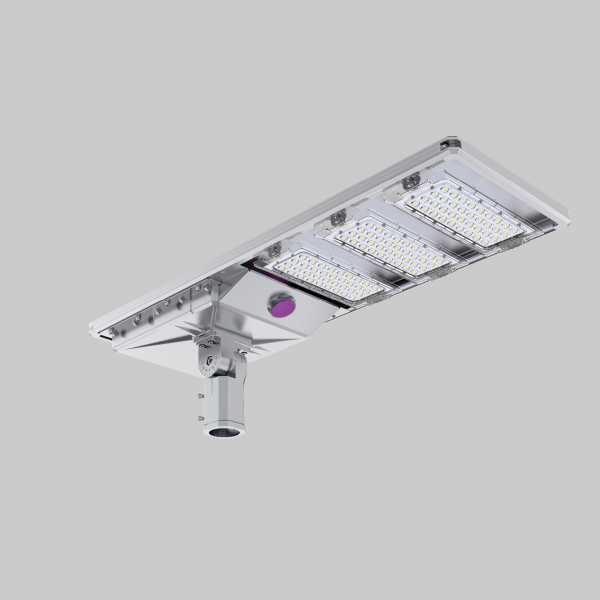

EXC-CR-Z05

  • Ultra-thin integrated design, simple and atmospheric;
  • Independent waterproof battery box design, safer protection, can be quickly disassembled;
  • Light source modular design, can expand the power and increase the angle adjustment;
  • New lithium iron phosphate battery, safe and durable, service life >2000 cycles;
  • Working mode can be customized, the product can be upgraded intelligent IOT IOT system control;
  • Multiple installation methods, can be installed vertically and horizontally;

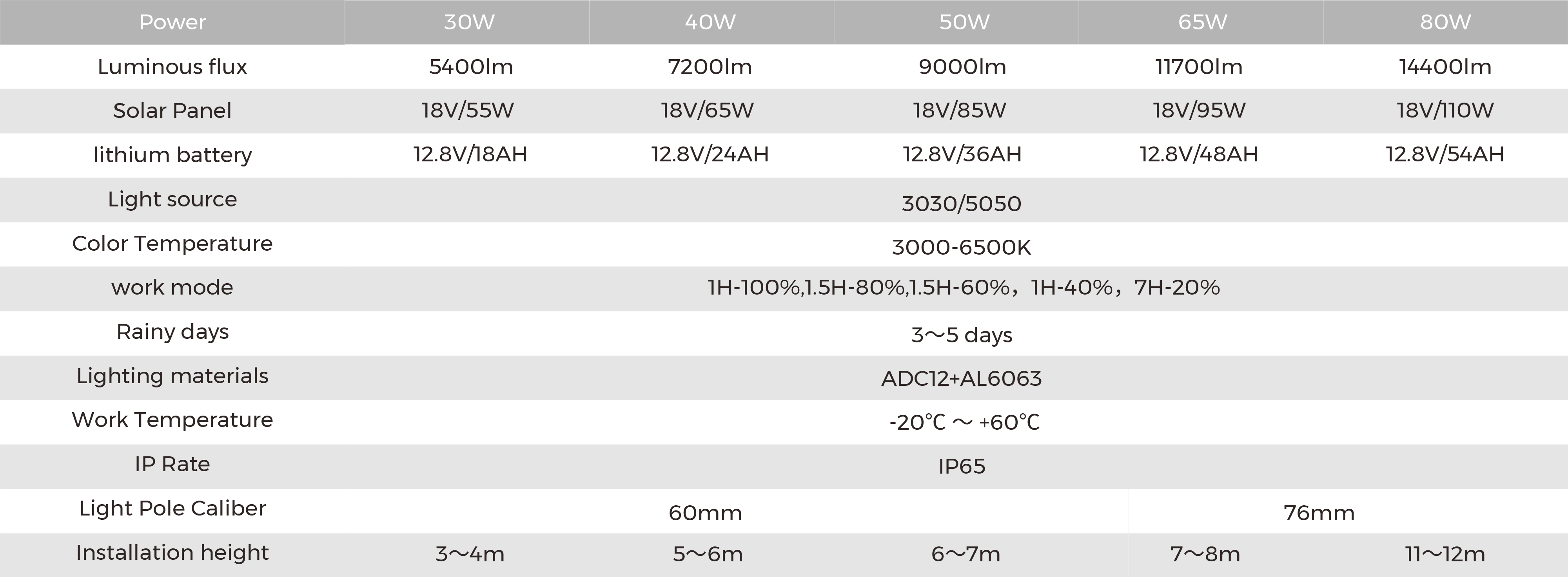

Basic Specifications

Power:30W/40W/50W/65W/80W
Luminous flux:5400lm/7200lm/9000lm/11700lm/14400lm
Solar Panel:18V/55W、18V/65W、18V/85W、18V/95W、18V/110W
lithium battery:12.8V/18AH、12.8V/24AH、12.8V/36AH、12.8V/48AH、12.8V/54AH
Light Source:5050/48PCS、5050/96PCS、5050/144PCS、5050/192PCS
Color:3000-6500K
Work mode:0.5H-100%,1.5Hsomebody80%/nobody60%,2Hsomebody60%/nobody40%,8H-20%
Rainy days:3~5days
Material:ADC12+AL6063
Work Temperature:-20℃ ~ +60℃
IP Rating:IP65
Light Pole Caliber:60mm/76mm
Installation height:3~4m/5~6m/6~7m/7~8m/11~12m
