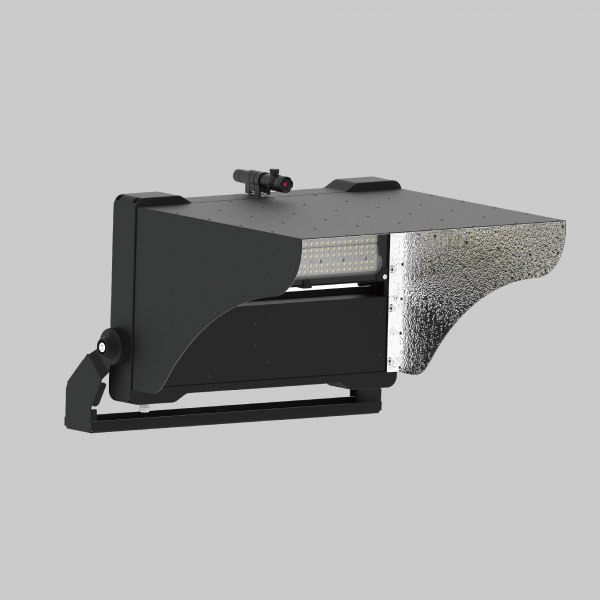

EXC-FL-Z02-AG

Adopts waterproof isolated switching power supply of famous brand, with high safety and reliability;
Module serialization design, can be quickly maintained, flexible power expansion;
Expandable fan models, high power, low temperature, light weight;
Module surface outdoor electrostatic spraying process, corrosion resistance and weather resistance, applicable to a variety of complex environments;
Lens adopts high quality imported optical grade material, accurate light distribution, high efficiency, strong weather resistance;
Multiple light distribution angles, suitable for a variety of lighting applications;
DALI/DMX and other intelligent control options;
Anti-electrocution protection: Class 1.

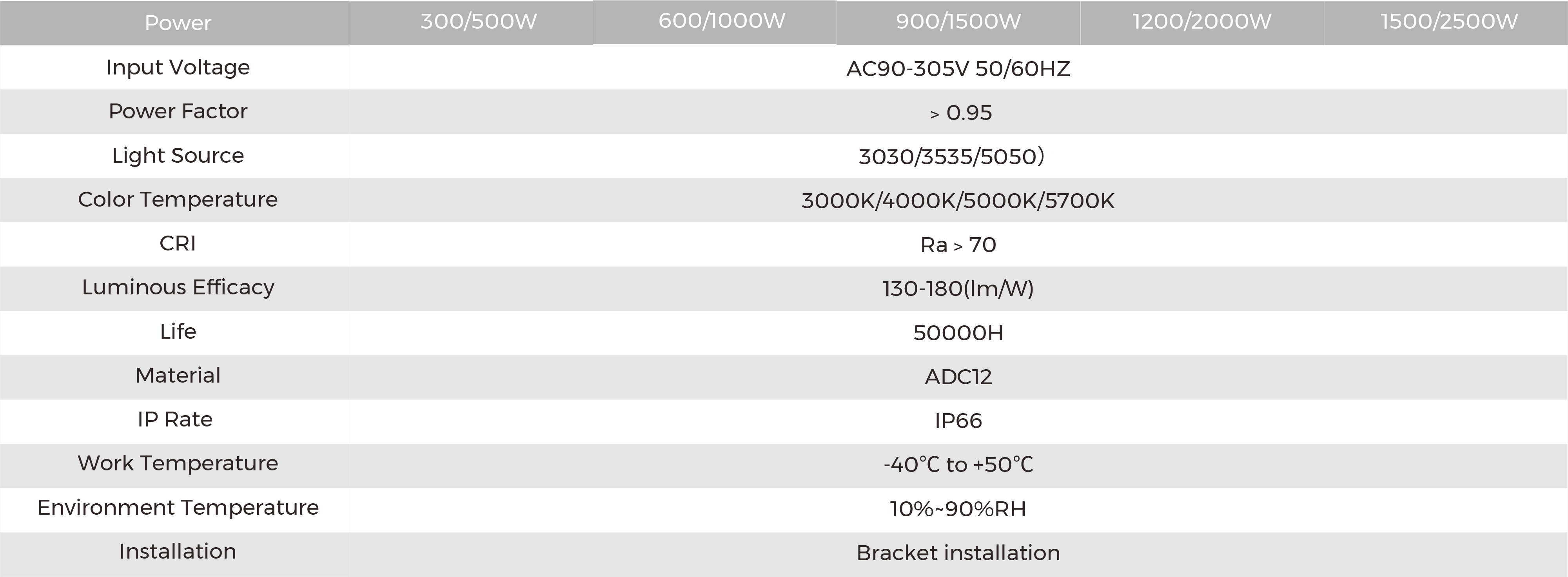

Basic Specifications

Power：300/500W、600/1000W、900/1500W、1200/2000W、1500/2500W
Input Voltage：AC90-305V 50/60HZ
Power Factor：﹥0.95
Light Source：3030/3535/5050
Color：3000K/4000K/5000K/5700K
CRI：Ra﹥70
Luminous Efficacy：130-180(lm/W)
Life：50000H
Material：ADC12
IP Rating：IP66
Work Temperature：-40℃ to +50℃
Environment humidity：10%~90%RH
Installation: Bracket installation

Resources

Specification IES Flie CAD Drawing

Optional Parameters

Power

1200/2000W

1500/2500W

300/500W

600/1000W

900/1500W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
