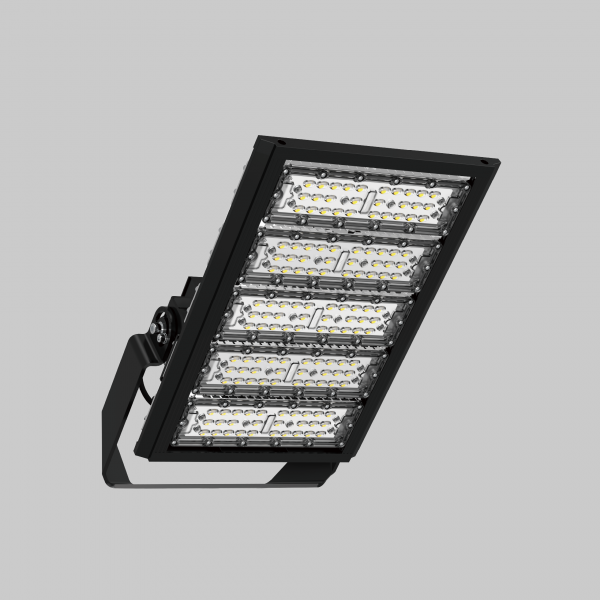

EXC-FL-Z02

Adopts waterproof isolated switching power supply of famous brand, with high safety and reliability;

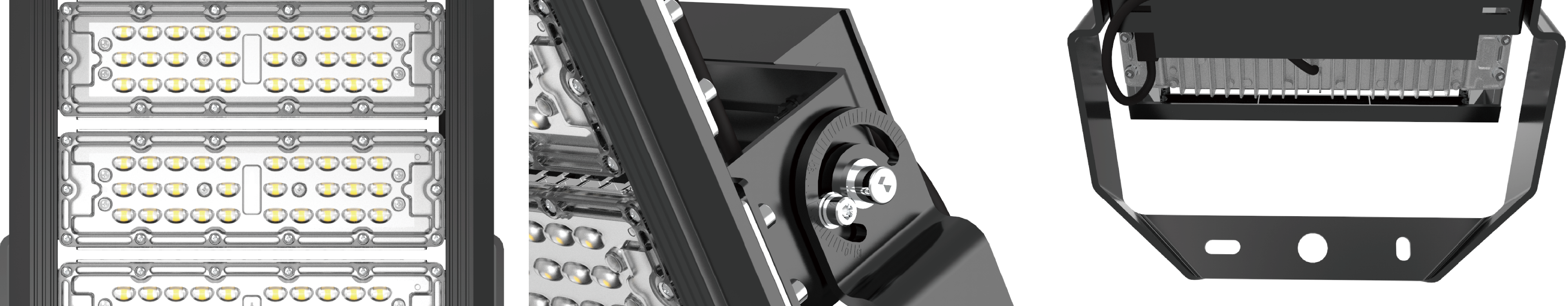

Module serialization design, can be quickly maintained, flexible power expansion;
Module surface outdoor electrostatic spraying process, corrosion resistance and weather resistance, applicable to a variety of complex environments;
The lens is made of high quality imported optical grade material, accurate light distribution, high efficiency and strong weather resistance;
Multiple light distribution angles, suitable for a variety of lighting applications;
Anti-electrocution protection: Class 1 category.

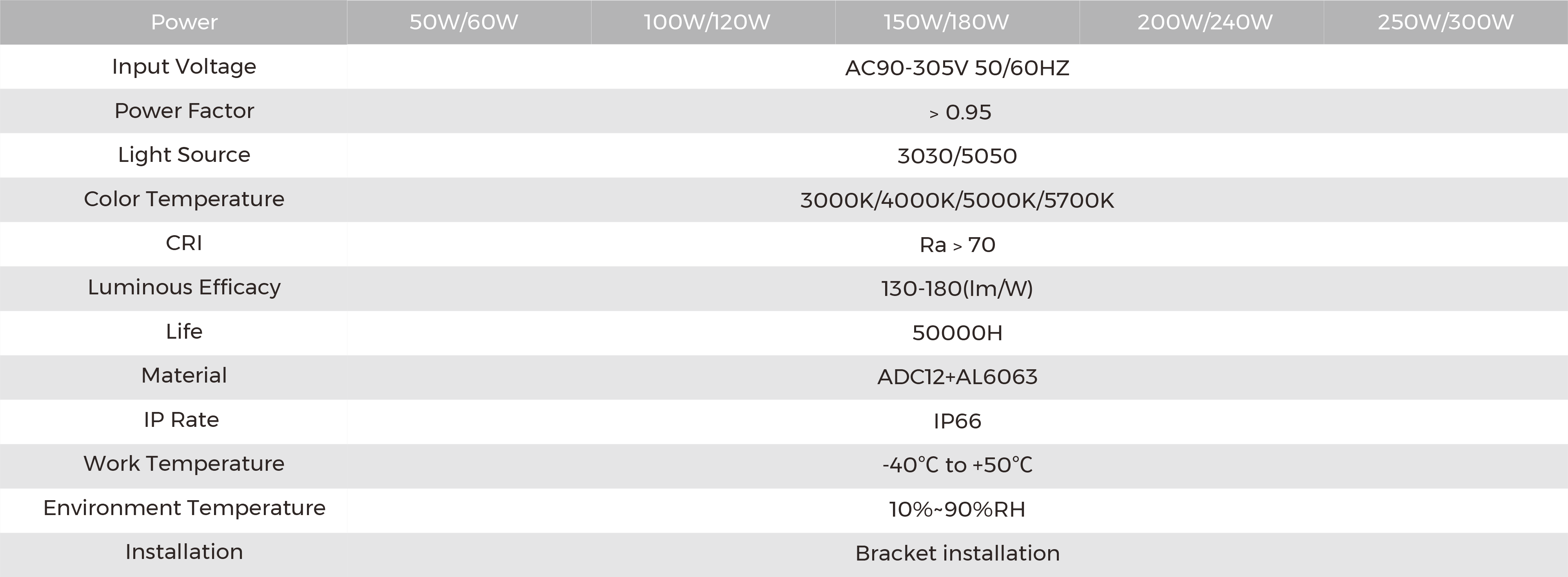

Basic Specifications

Power：50/60W、100/120W、150/180W、200/240W、250/300W
Input Voltage：AC90-305V 50/60HZ
Power factor：﹥0.95
Light source：3030/5050
Color：3000K/4000K/5000K/5700K
CRI：Ra﹥70
Luminous Efficacy：130-180(lm/W)
Life：50000H
Material：ADC12+AL6063
IP Rating：IP66
Work Temperature：-40℃ to +50℃
Environment humidity：10%~90%RH
Installation: Bracket installation

Resources

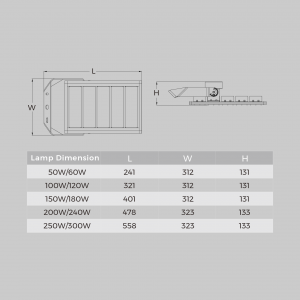

Specification lES File CAD Drawing

Optional Parameters

Power

100/120W

150/180W

200/240W

50/60W

250/300W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
