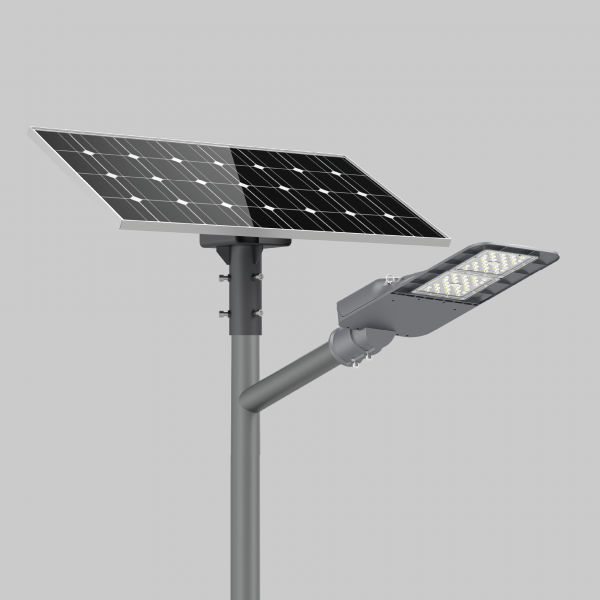

EXC-FR-RA2

The lens is made of high quality imported optical grade material, accurate light distribution, high efficiency and strong weather resistance;
Adopting brand-new A-grade lithium iron phosphate, charging and discharging more than 2000 times;
Intelligent charging and discharging management system, reasonable planning of charging and discharging;
Adopt high luminous efficiency 5050 lamp beads, the luminous efficiency can reach 210LM/W;
Metal shell, IP65 waterproof grade, able to be used in a variety of harsh environments;
High-efficiency monocrystalline silicon wafer, conversion efficiency of more than 23%, life expectancy ≧ 25 years;
Expandable IOT function, remote control lamps and lanterns;
Easy to install, wide range of applications

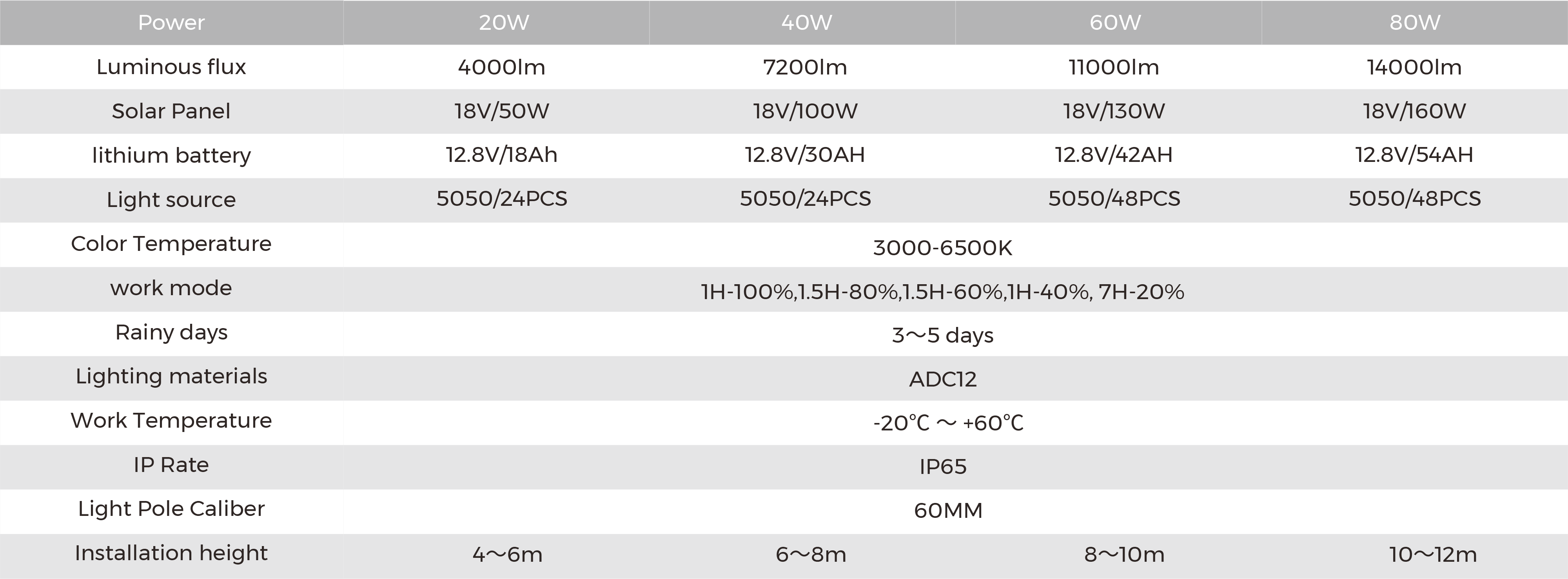

Basic Specifications

Power：20W/40W/60W/80W
Luminous flux：4000lm/7200lm/11000lm/14000lm
Solar Panel：18V/50W、18V/100W、18V/130W、18V/160W
lithium battery：12.8V/18AH、12.8V/30AH、12.8V/42AH、12.8V/54AH
Light Source：5050/24PCS、5050/24PCS、5050/48PCS、5050/48PCS
Color：3000-6500K
Work mode：1H-100%,1.5H-80%,1.5H-60%，1H-40%，7H-20%
Rainy days：3~5days
Material：ADC12
Work Temperature：-20℃ ～ +60℃
IP Rating：IP65
Light Pole Caliber：60mm
Installation height：4～6m/6～8m/8～10m/10～12m

Resources

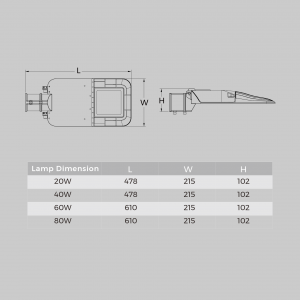

Specification lES File CAD Drawing

Optional Parameters

Power

20W

40W

60W

80W

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear
