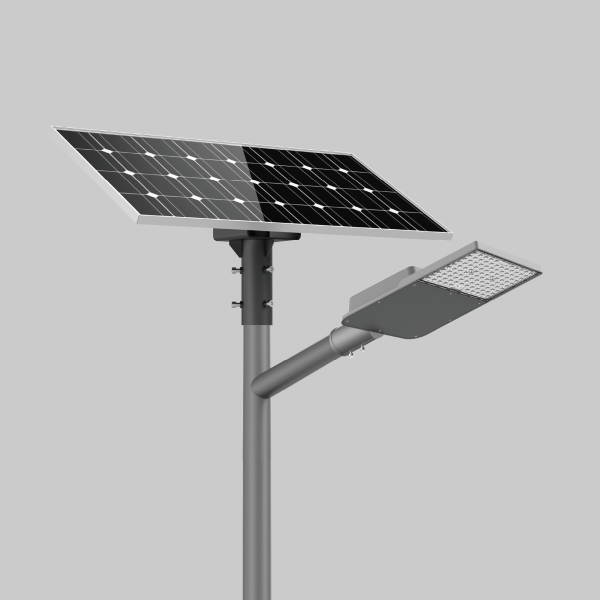

EXC-FR-Z10

  • Lens is made of professional optical grade material, accurate light distribution and strong weather resistance;
  • Intelligent control management system, multiple control modes;
  • Independent battery compartment design, can be quickly disassembled for maintenance;
  • Multiple application scenarios, can expand the utility complementary, Internet of Things function;
  • Simple installation and easy maintenance;

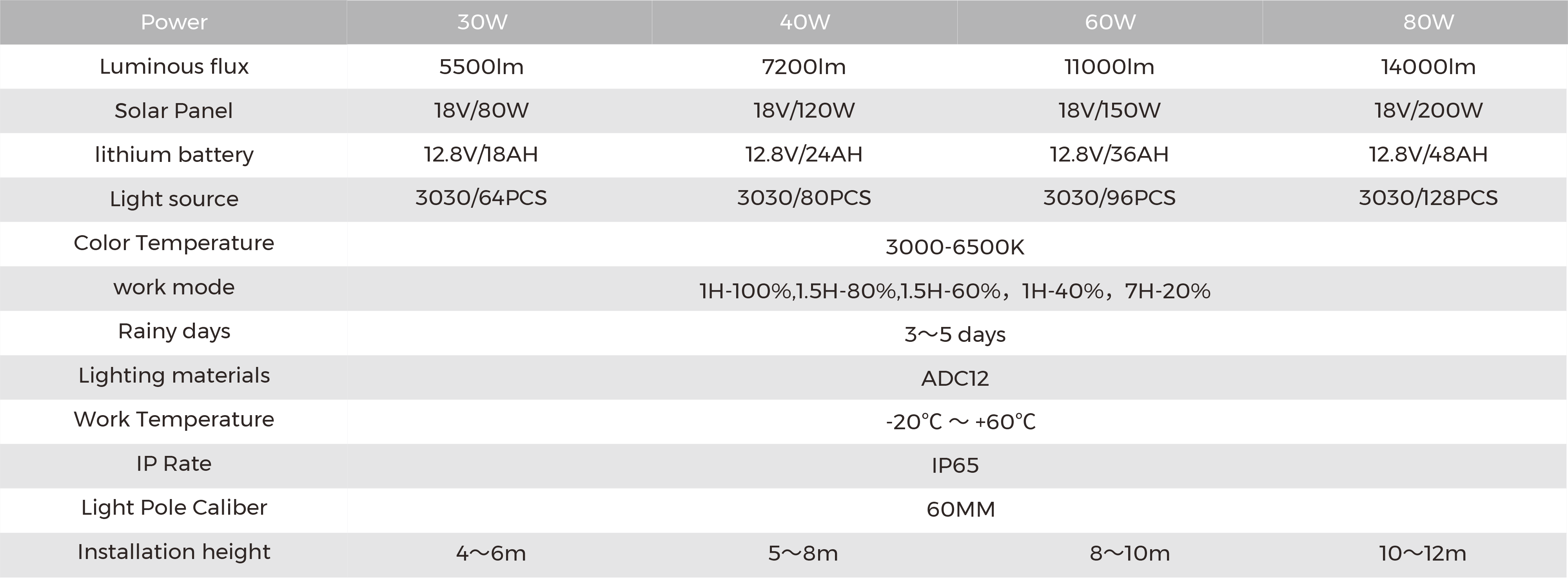

Basic Specifications

Power:30W/40W/60W/80W
Luminous flux:5500lm/7200lm/11000lm/14000lm
Solar Panel:18V/80W、18V/120W、18V/150W、18V/200W
lithium battery:12.8V/18AH、12.8V/24AH、12.8V/36AH、12.8V/48AH
Light Source:3030/64PCS、3030/80PCS、3030/96PCS、3030/128PCS
Color:3000-6500K
Work mode:1H-100%,1.5H-80%,1.5H-60%,1H-40%,7H-20%
Rainy days:3~5days
Material:ADC12
Work Temperature:-20℃ ~ +60℃
IP Rating:IP65
Light Pole Caliber:60mm
Installation height:4~6m/5~8m/8~10m/10~12m
