EXC-JH10B

  •  Cost-effective high uniformity writing board light;

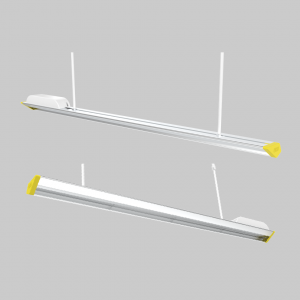

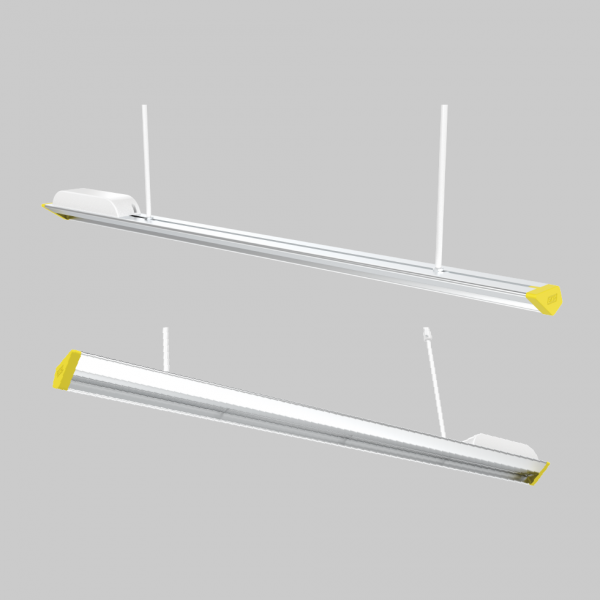

  • The light body adopts metal aluminum frame, mold extrusion one-piece molding, impact resistance greatly improved, aluminum color anodized with lemon yellow PC end cap, fresh and lively style;

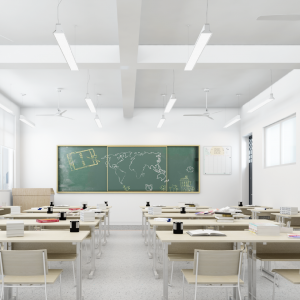

  •  Professional polarized lens, can be installed in close proximity to the writing board, in order to meet the requirements of students to use high uniform illumination at the same time, greatly reducing the teacher's direct glare, to solve the industry's pain points;
  • Adopt high index, high luminous efficiency 2835 lamp beads, low light decay, blue light hazard RG0;
  • High PF value, low THD drive, no strobe, high efficiency, light output waveform fluctuation depth <1%;
  • Protection level IP40, effectively prevent mosquitoes from entering the lamp body to affect the service life of the lamp body.
Basic Specifications

Voltage:AC220-240V
Power:36W
Power factor:≥0.95
Color rendering index (CRI):Ra>95,R9>90,full-spectrum LED
Luminous flux:3000-3600lm
Luminous Efffcacy:>90lm/W
Blue Light Hazard:RG0
Color Tolerance:≤3 SDCM
Color:5000K/4000K/3500K
Flicker:<1%
Anti-Glare:Lamp Body Anti-Glare
Angle:C0-180 82° C90-270 25°
Blackboard Surface Uniformity:>0.86
Installation:Pendant mount
IP Rate:IP40
Material:Aluminum profile + plastic end cap

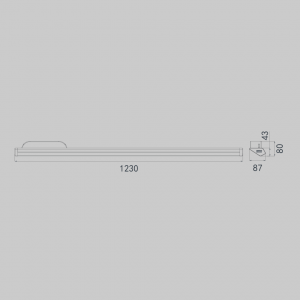

Dimensions:1230x87x80mm
