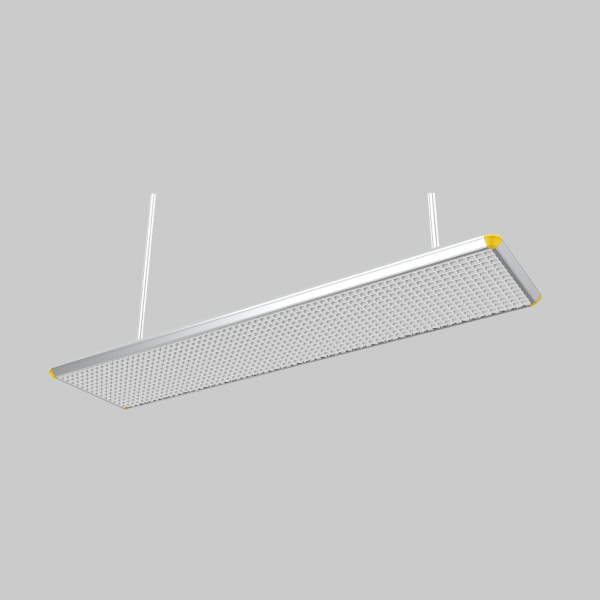

EXC-JJ04B

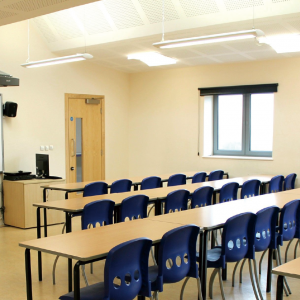

A straight down low glare grille anti-glare classroom light;
The light body is made of metal aluminum frame, mold extrusion one-piece molding, the product strength of the impact resistance is greatly improved, the back plate is made of environmentally friendly plastic material, safe and environmentally friendly, does not contain VOC, non-toxic, green and environmentally friendly;
Three-layer optical design, with upper and lower transmittance, increase the ceiling background brightness, optical-grade material lens will be light uniform diffusion, diffusion plate further light uniform distribution, and then after the grille anti-glare treatment, the lamps and lanterns high light efficiency, more uniform light, low glare;
Square / honeycomb / galvanized grille can be used according to the actual application requirements to achieve different effects;
Adopt high index, high luminous efficacy 2835 lamp beads, low light decay, blue light hazard RG0;
Isolated high PF value, low THD driver, no strobe, high efficiency, light output waveform fluctuation depth <1%;
Protection level IP40, effectively prevent mosquitoes from entering the lamp body to affect the service life of the lamp body.

Basic Specifications

Voltage：AC220-240V
Power：36W
Power factor：≥0.95
Color rendering index (CRI)：Ra＞95，R9>90，full-spectrum LED
Luminous flux：3000-3600lm
Luminous Efffcacy：>85lm/W
Blue Light Hazard：RG0
Color Tolerance：≤3 SDCM
Color：5000K/4000K/3500K
Flicker：<1%
Anti-Glare：Grille anti-glare
Angle：C0-180 65° C90-270 27°
Blackboard Surface Uniformity：>0.85
Installation：Pendant mount
IP Rate：IP40
Material：Aluminum profile + plastic end cap
Dimensions：1230x115x106mm

Resources

Specification IES File CAD Drawing

Optional Parameters

Color

3500K

4000K

5000K

Product Silkscreen

EXC

Customized

Product Label

EXC

Customized
