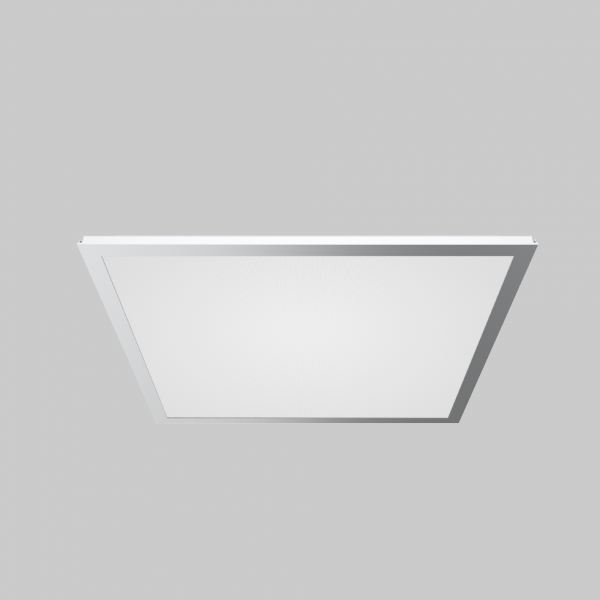

EXC-JJ05B



  •  A straight down type square prismatic anti-glare lamp with high cost performance;
  •  Lamp body adopts metal aluminum frame, mold extrusion one-piece molding, product strength, impact resistance greatly improved; back plate is made of metal, safe and environmentally friendly;
  • Three-layer optical design, high luminous efficacy, more uniform light, low glare;
  •  Adopt high index, high luminous efficiency 2835 lamp beads, low light decay, blue light hazard RG0;
  •  Isolated high PF value, low THD drive, no strobe, high efficiency, light output waveform fluctuation depth <1%;
  • Protection level IP40, effectively prevent mosquitoes from entering the lamp body to affect the service life of the lamp body;

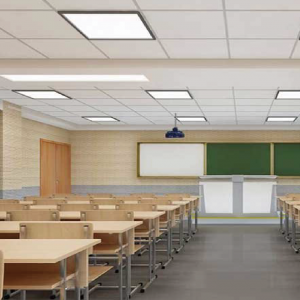

  •  Can be used for gypsum ceiling, integrated ceiling lights different application scenarios using different installation options.
Basic Specifications

Voltage:AC220-240V
Power:36W
Power factor:≥0.95
Color rendering index (CRI):Ra>95,R9>90,full-spectrum LED
Luminous flux:3000-3600lm
Luminous Efffcacy:>85lm/W
Blue Light Hazard:RG0
Color Tolerance:≤3 SDCM
Color:5000K/3700K
Flicker:<1%
Anti-Glare:Grille anti-glare
Angle:C0-180 96° C90-270 93°
Blackboard Surface Uniformity:>0.80
Installation:Pendant mount
IP Rate:IP40
Material:Aluminum profile + plastic end cap

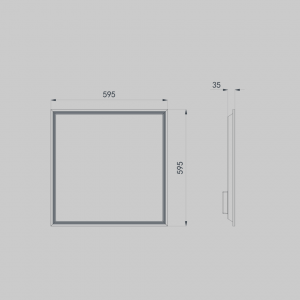

Dimensions:595x595x35mm
