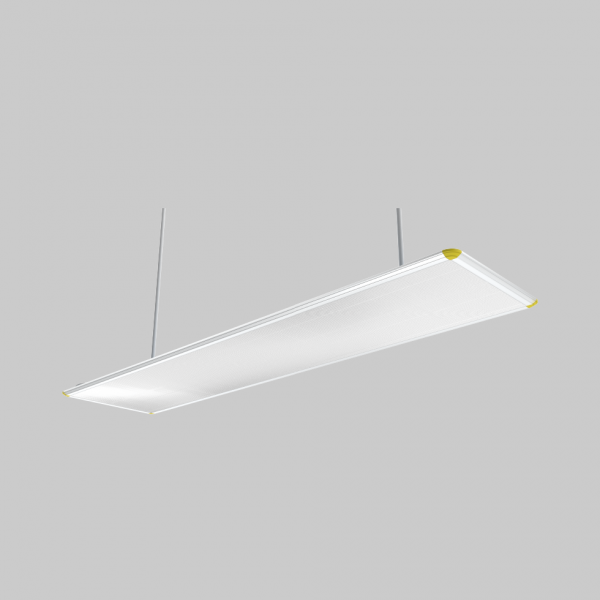

EXC-JJ07B



  • An extremely energy efficient new product that can replace the traditional grid light;
  • Its unique all-plastic integrated structure design maximizes the optimization of the product's heat dissipation performance, to ensure the long service life of the product;
  • High efficiency, high apparent finger education SMD2835 light source and diffusion plate with the best cooperation, coupled with the application of the grille anti-glare cover, so that the lamps and lanterns out of the light softer, more uniform, eliminating the glare brought about by the trouble;

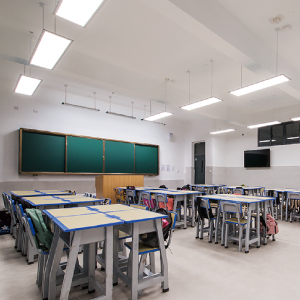

  • External constant-current driver power supply, taking up little space, easy to install and use, and to ensure that the lamps and lanterns instantly light up without stroboscopic, applicable to the series of lamps and lanterns for education, applicability, in line with the classroom lighting products.
Basic Specifications

Voltage:AC220-240V
Power:36W
Power factor:≥0.95
Color rendering index (CRI):Ra>95,R9>90,full-spectrum LED
Luminous flux:3000-3600lm
Luminous Efffcacy:>85lm/W
Blue Light Hazard:RG0
Color Tolerance:≤3 SDCM
Color:5000K/3700K
Flicker:<1%
Anti-Glare:Prismatic anti-glare
Angle:C0-180 96° C90-270 93°
UGR:<16
Blackboard Surface Uniformity:>0.80
Installation:Pendant mount
IP Rate:IP40
Material:Aluminum profile + plastic end cap

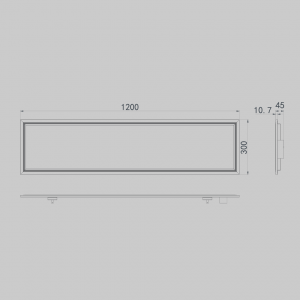

Dimensions:1200x300x45mm
