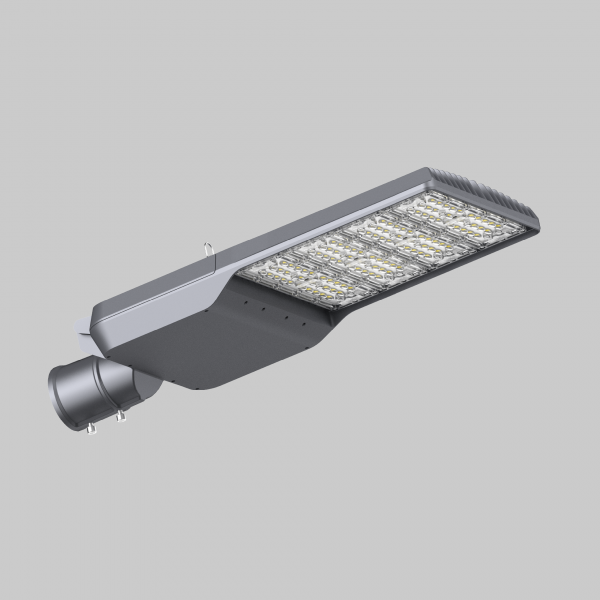

EXC-RL-Z01

Adopt famous brand waterproof isolated switching power supply, high safety and reliability;

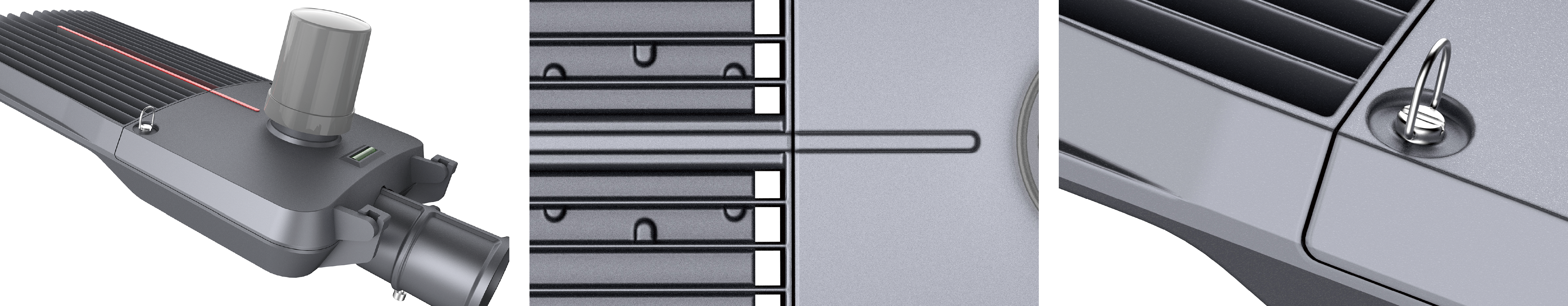

One-piece die-casting heat dissipation lamp body design, simple and solid structure, excellent heat dissipation, long life;
Outdoor electrostatic spraying process on the surface of the lamp body, corrosion resistance and weather resistance, suitable for a variety of complex environments;
Lens adopts high quality imported optical grade material, accurate light distribution, high efficiency, strong weather resistance;

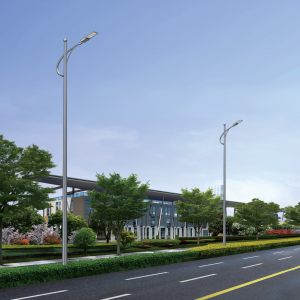

Multiple light distribution angles, suitable for various lighting applications;
CAT.1/PLC/NB/485 and other intelligent control options;
Anti-electrocution protection: Class 1.

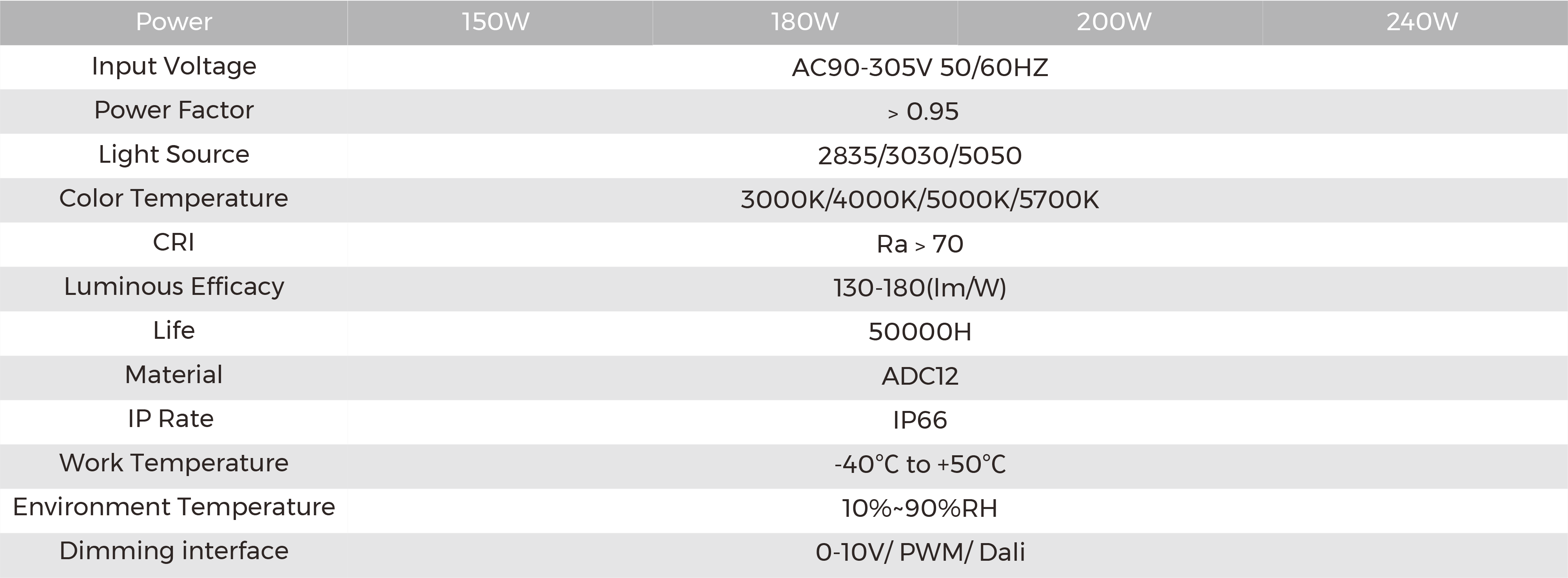

Basic Specifications

Power：150W/180W/200W/240W
Input Voltage：AC90-305V 50/60HZ
Power Factor：﹥0.95
Light Source：2835/3030/5050
Color：3000K/4000K/5000K/5700K
CRI：Ra﹥70
Luminous Efficacy：130-180(lm/W)
Life：50000H
Material：ADC12
IP Rating ：IP66
Work Temperature：-40℃ to +50℃
Environment humidity：10%~90%RH
Dimming interface: 3-in-1 dimming

Resources

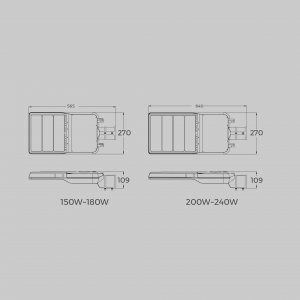

Specification IES File CAD Drawing

Optional Parameters

Power

150W

180W

200W

240W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-RL-Z01

Basic Specifications

Resources

Optional Parameters

Available Models

Installation Methods
