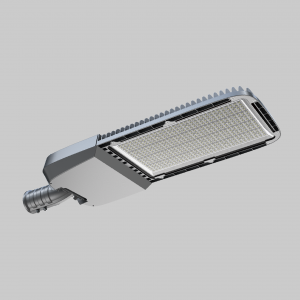

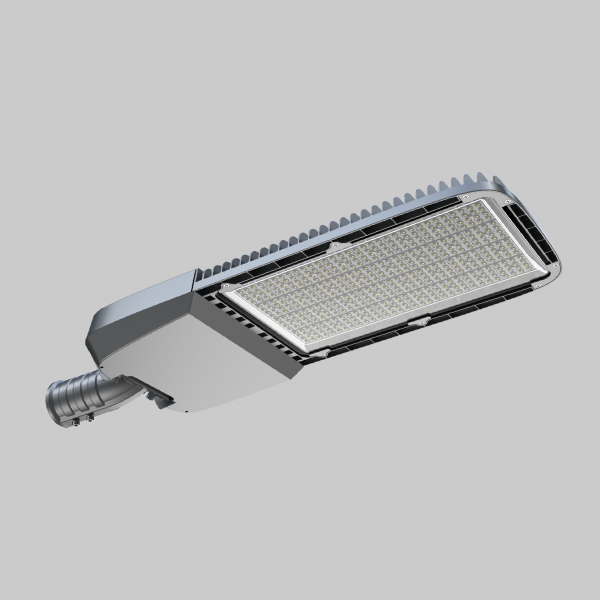

EXC-RL-Z05

Adopt famous brand waterproof isolated switching power supply, high safety and reliability;
Module serialization design, quick maintenance and flexible power expansion;
Outdoor electrostatic spraying process on the surface of the lamp body, corrosion resistance and weather resistance, suitable for a variety of complex environments;
Lens adopts high quality imported optical grade material, accurate light distribution, high efficiency, strong weather resistance;

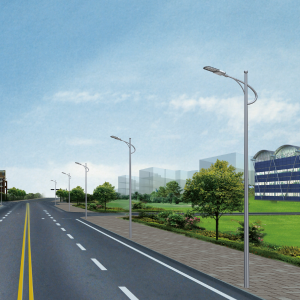

Multiple light distribution angles, suitable for various lighting applications;
CAT.1/PLC/NB/485 and other intelligent control options;
Anti-electrocution protection: Class 1.

Basic Specifications

Power：30W/60W /80W/ 100W/ 120W /150W/180W/ 200W /250W/ 300W /360W /400W
Input Voltage：AC90-305V 50/60HZ
Power Factor：﹥0.95
Light Source：2835/3030/5050
Color：3000K/4000K/5000K/5700K
CRI：Ra﹥70
Luminous Efficacy：130-180(lm/W)
Life：50000H
Material：ADC12+AL6063
IP Rating ：IP66
Work Temperature：-40℃ to +50℃
Environment humidity：10%~90%RH
Dimming interface: 3-in-1 dimming

Resources

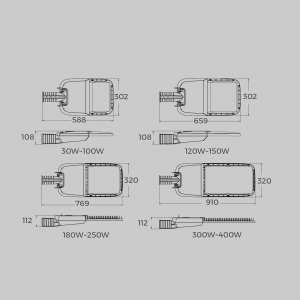

Specification IES File CAD Drawing

Optional Parameters

Power

30W

100W

120W

150W

180W

200W

250W

300W

360W

400W

60W

80W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
