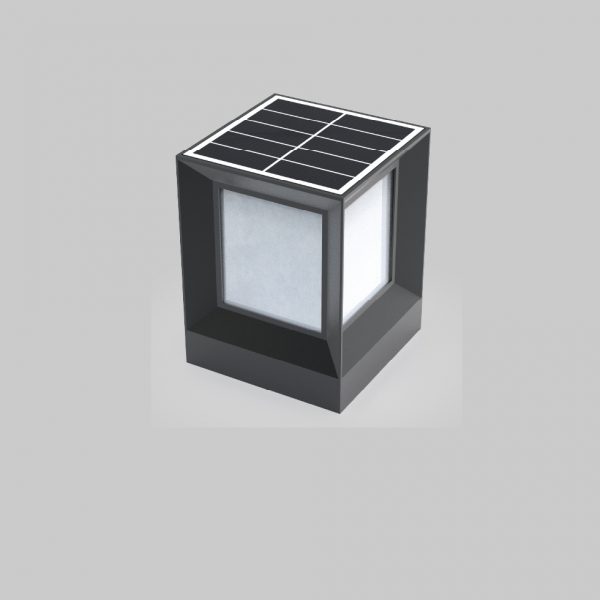

EXC-TZT150A



  • Industry-leading photovoltaic charging efficiency enhancement technology
  • Supports adaptive time tracking technology for ultimate energy saving and effective extension of battery life.
  • Support light control and time control scene adaptive intelligent application
  • High-efficiency monocrystalline silicon photovoltaic module and high-efficiency safe lithium iron phosphate battery hardware design.
  • Professional photovoltaic system with high-quality assembly process, realizing outdoor multi-scene all-day application.
  • Support light control anti-interference, built-in highly integrated multi-dimensional safety protection design.
  • Easy installation structure design on the surface of the column head, flexible and convenient application.
Basic Specifications

Peak power consumption: 2 W
Average power consumption: 1W
Light Source: 6x LED
Color: 2200~6500K
Light output: W>60lm/w
Photovoltaic battery specifications: 3W monocrystalline silicon
Energy storage battery specifications: 3.2V 2400mAh LFP
Rated charging time: 5-6h
Rated maximum endurance: 10-11h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 3 rainy days
Control mode: Light Control/Time Control
Material: Aluminium alloy、PMMA

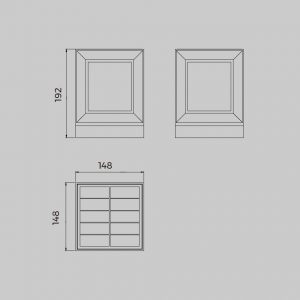

Size: L*W*H: 148*148*192mm
IP Rating: IP65
Weight: 0.91 kg
Charging temperature: 0-50°C
Storage temperature: -20-70°C
Discharge temperature: -20~50°C
Life: ≥15000h

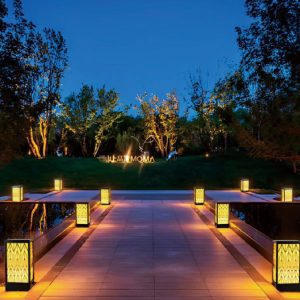

Applications:Column head landscape accent, surface mounted

Resources
Optional Parameters

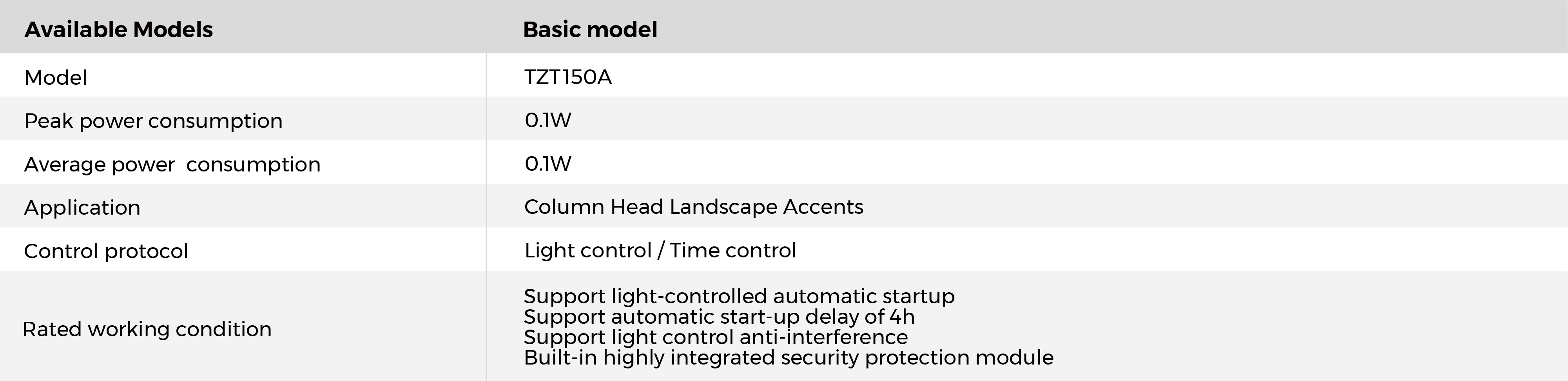

Available Models
