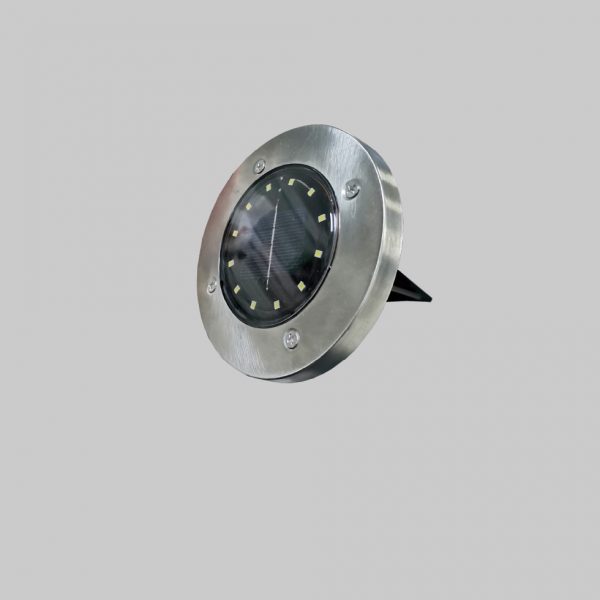

EXC-TDM117A

  • Industry-leading photovoltaic charging efficiency enhancement technology to maximize the use of solar energy
  • Intelligent power control
  • Optical control, wired DMX512, wireless Zigbee multiple control technology in a single package
  • High-efficiency monocrystalline silicon photovoltaic modules, high-efficiency and safe lithium iron phosphate battery hardware design professional photovoltaic system with high-quality assembly process
  • Built-in highly integrated multi-dimensional safety protection design, support light control anti-interference
  • Embedded, buried installation design, application of secrecy, excellent scene integration
Basic Specifications

Peak power consumption: 0.04 W
Average power consumption: 0.04 W
Light Source: 12 x LED
Color: 2200~6500K
Light output: W≥75lm/w
Photovoltaic battery specifications: 0.2W monocrystalline silicon
Energy storage battery specifications: 600mAh LFP
Rated charging time: 14-15h
Rated maximum endurance: 50h
Rated rainy day resistance: single-day work 10h, can withstand ≥ 3 rainy days
Control mode: Light Control
Material: ABS、PC、PET
Size: /
IP Rating: IP65
Weight: /
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥5000h

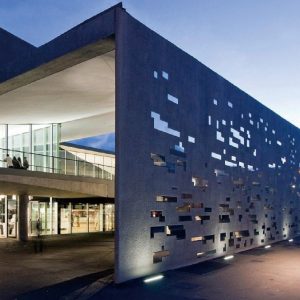

Applications: In-ground accent, buried, recessed installation

Resources
Optional Parameters

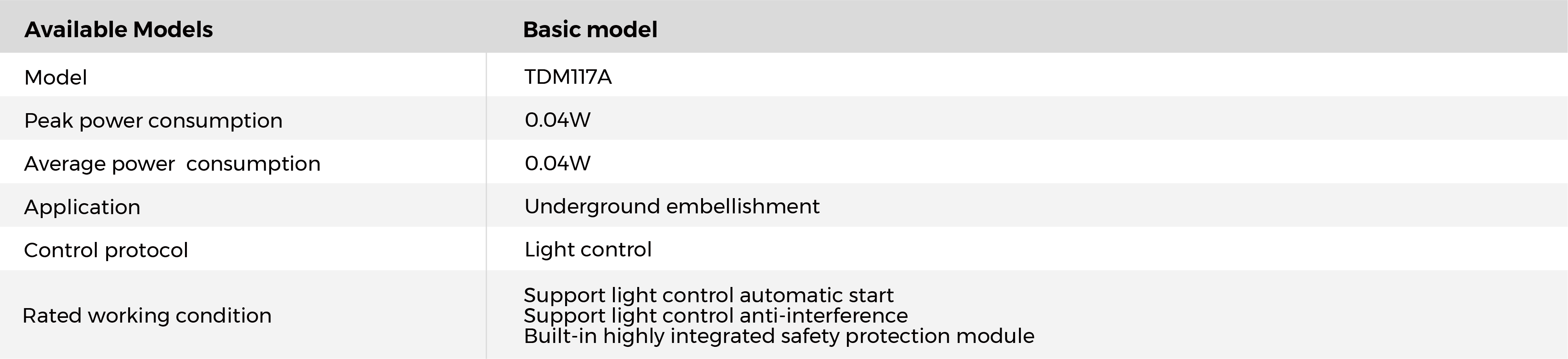

Available Models
