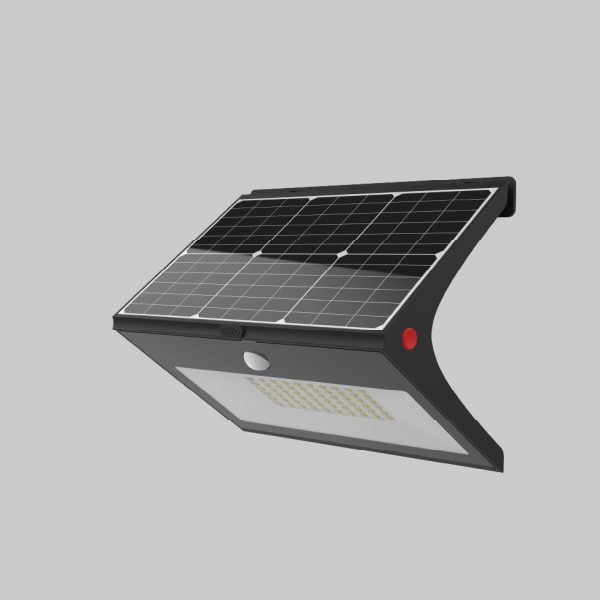

EXC-TF230A



  • Supports adaptive time tracking extreme energy-saving technology, effectively extending the battery life
  • New high light efficiency optical system, high efficiency and high quality light output.
  • Supporting light control and time control scene adaptive intelligent application.
  • High-efficiency single product silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • High-quality assembly process, outdoor multi-scene all-weather application.
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design.
  • Fixed surface mounting can be adapted to a variety of mounting accessories to realize multi-scene applications.
Basic Specifications

Peak power consumption: 10W
Average power consumption: 3W
Light source: 60 x LED
Color: 2200-6500K
Light output: W≥75lm/w
Photovoltaic battery specifications: 5W monocrystalline silicon
Energy storage battery specifications: 7200mAh LFP
Rated charging time: 6-7 h
Rated maximum endurance: 7-8h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 2 rainy days
Control :  Light Control/Time Control/Body Sensor/BLE
Material: ABS、PC、Glass

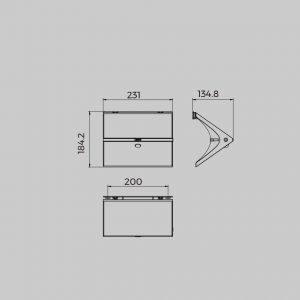

Size: L*W*H:231*184*135mm
IP Rating: IP65
Weight: /
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)
Application: Multi-functional floodlighting, fixed surface mounting.

Resources
Optional Parameters

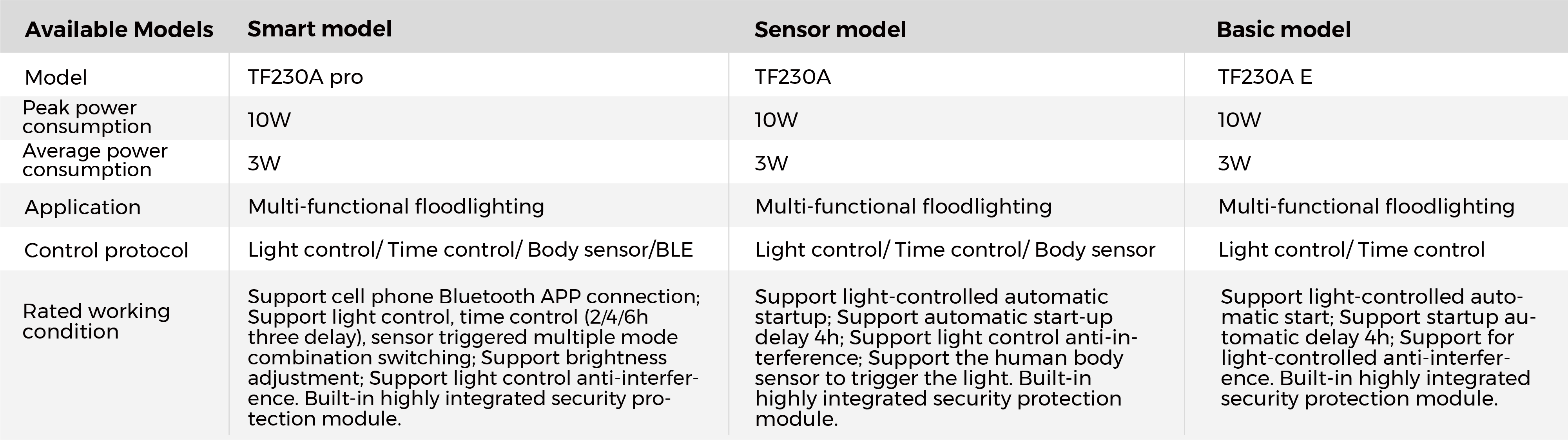

Available Models



Installation Methods
