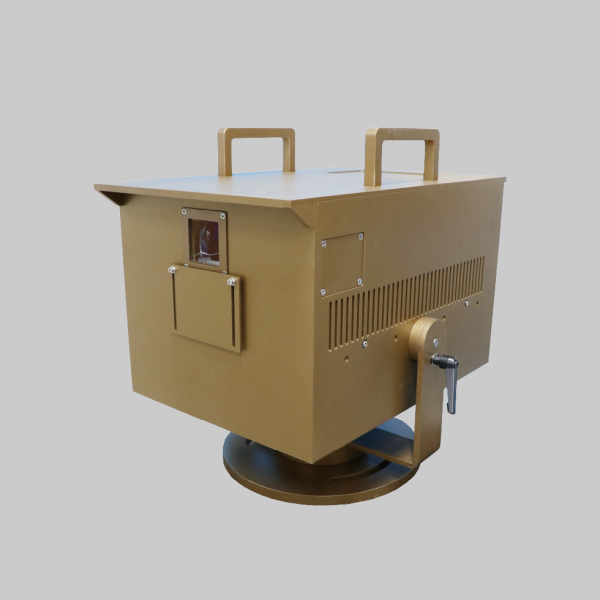

EXC-TJ20A0

Efficiency with signal output: ≥95%
Scanning rate: 50Kpps ILDA at 8°30Kpps ILDA at 60°
Beam performance: can edit any beam, light curtain and any shape of the beam or light curtain arrangement
Salt spray test: 72 hours salt spray test GB/T10125-2012 qualified
Function: Intelligent start control module, scene control module, time control module, remote control module, DMX512 control module, ILDA control module, UDP bridge control module, Artnet control module
Cooling method: air-cooled/structural cooling, cooling fan diameter ≤ 60mm, and equipped with special anti-insect nets
Lamp material: all aluminum alloy integrated casting + plating technology

Basic Specifications

Color：Full color
Light Source：Laser
Life：10000h
Size：485mmX367mmX491mm
Modulation frequency：≥60K
Angle of dispersion：<1.5mrad
IP Rating：IP66
Work Temperature：-30℃ to 45℃
Storage temperature：-40℃ to 70℃
Cooling method：air-cooled/structural cooling, cooling fan diameter ≤ 60mm, and equipped with special anti-insect mesh

Resources

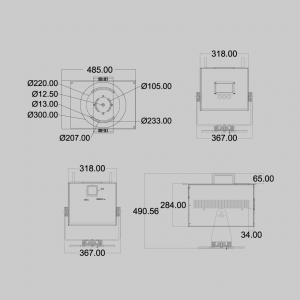

Specification lES File CAD Drawing

Optional Parameters

Power

280W

350W

250W

Control protocol

Artnet

RJ45

DMX512

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-TJ20A0

Basic Specifications

Resources

Optional Parameters

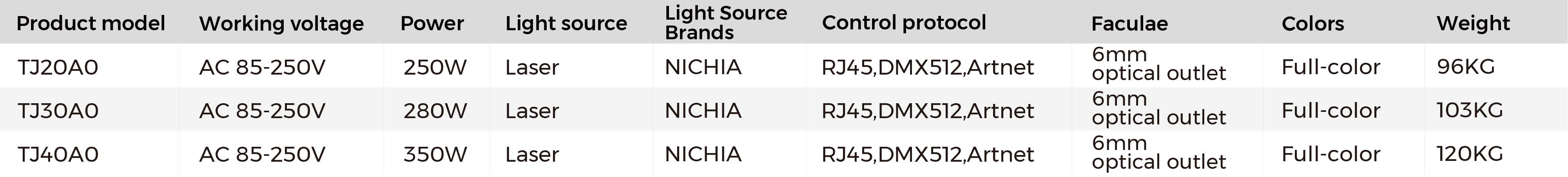

Available Models
