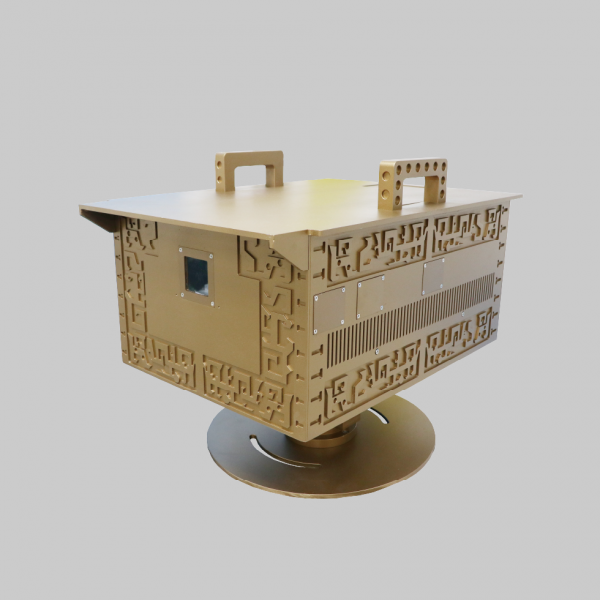

EXC-TJ60A0

Efficiency with signal output: ≥95%
Scanning rate: 50Kpps ILDA at 8°30Kpps ILDA at 60°
Beam performance: can edit any root beam, light curtain and any shape of the beam or light curtain arrangement
Function: Intelligent Start Control Module, Scene Control Module, Time Control Module, Remote Control Module, DMX512 Control Module, ILDA Control Module, UDP Bridge Control Module, Artnet Control Module
Cooling method: air-cooled/structural cooling, cooling fan diameter ≤ 60mm, and equipped with special anti-insect nets
Lamp material: all aluminum alloy integrated casting + plating technology

Basic Specifications

Color：Full color
Light Source：Laser
Life：10000h
Size：793X518X725mm
Modulation frequency：≥60K
Angle of dispersion：<1.5mrad
IP Rating：IP66
Work Temperature：-30℃ to 45℃
Storage temperature：-40℃ to 70℃
Cooling method：air-cooled/structural cooling, cooling fan diameter ≤ 60mm, and equipped with special anti-insect mesh

Resources

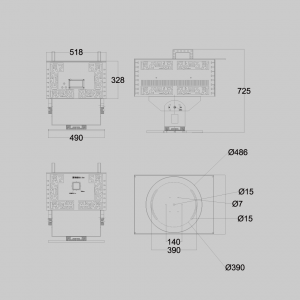

Specification lES File CAD Drawing

Optional Parameters

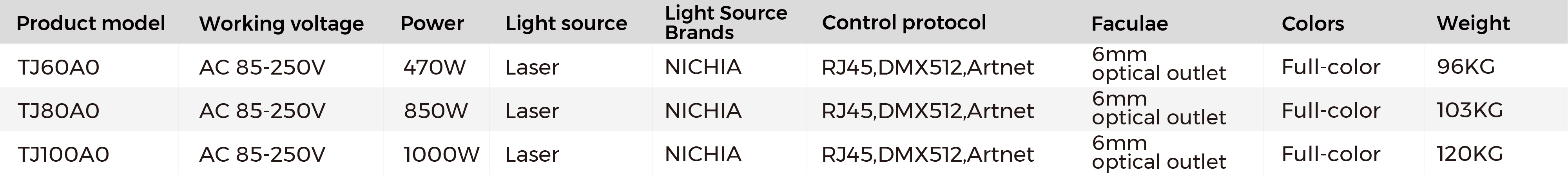

Power

470W

850W

1000W

Control protocol

Artnet

RJ45

DMX512

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
