EXC-TP160E/TP180A



  • Industry-leading photovoltaic charging efficiency enhancement technology, maximizing the use of solar energy
  • Supports adaptive time tracking technology for ultimate energy saving, effectively extending the battery life
  • New high-efficiency optical system, unparalleled high efficiency and high quality light output.
  • Light control, time control, wireless Zigbee multiple control technology in one.
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design
  • Support for water floating, lawn poles, wall mounted multi-functional installation applications
Basic Specifications

Peak power consumption: 1W
Average power consumption: 0.4W
Light source: 24 x LED
Color: RGB
Light output: RGB ≥ 15lm/w
Photovoltaic battery specifications: 1.1W monocrystalline silicon
Energy storage battery specifications: 1500mAh LFP
Rated charging time: 5-6 h
Rated maximum endurance: 11-12h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 3 rainy days
Control : Light Control/ Wired DMX512 / Wireless Zigbee
Material:  PC

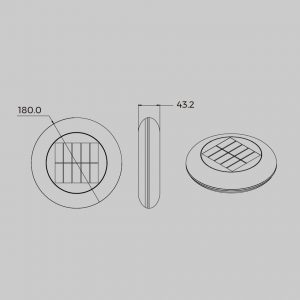

Size: Φ180*43.2mm
IP Rating: IP65
Weight: 0.42kg
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)
Application: RGB Dynamic Variable Embellishment, Water Floating, Lawn Riser, Wall Mounted Functional Installation

Resources
Optional Parameters

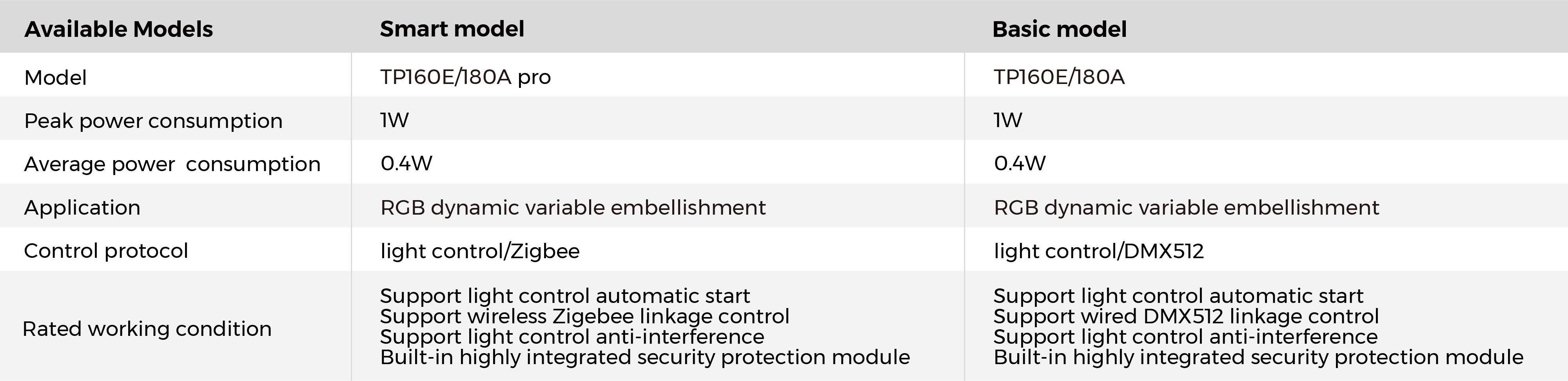

Available Models
