EXC-TS115C



  • Support adaptive time tracking extreme energy-saving technology, effectively extend the battery life
  • New high light efficiency optical system, high efficiency and high quality light output.
  • Support light control, time control scene adaptive intelligent applications
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • High-quality assembly process, outdoor multi-scene all-weather applications
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design
  • Simple rotating bracket with ground-plugging installation design, flexible and convenient application.
Basic Specifications

Peak power consumption: 0.3-2W
Average power consumption: 0.3-0.75W
Light source: 4 x LED
Color: 2200-6500K
Light output: W≥75lm/w
Photovoltaic battery specifications: 2.5W monocrystalline silicon
Energy storage battery specifications: 6000mAh LFP
Rated charging time: 7-8 h
Rated maximum endurance: 9-30h
Rated rainy day resistance: single-day work 3-10h, can withstand ≥ 3 rainy days
Control :  Light Control/Time Control
Material: ABS、PC、PET

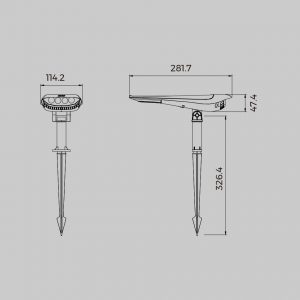

Size: L*W*H:281.7*113.4*158.8mm
IP Rating: IP65
Weight: 0.4KG

Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)

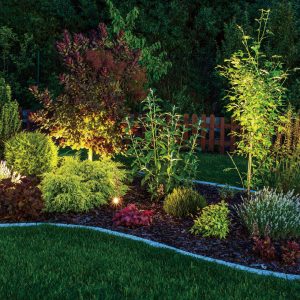

Application:  Localized light casting, rubbing wall lighting, rotating bracket mounting + ground insertion mounting

Resources
Optional Parameters

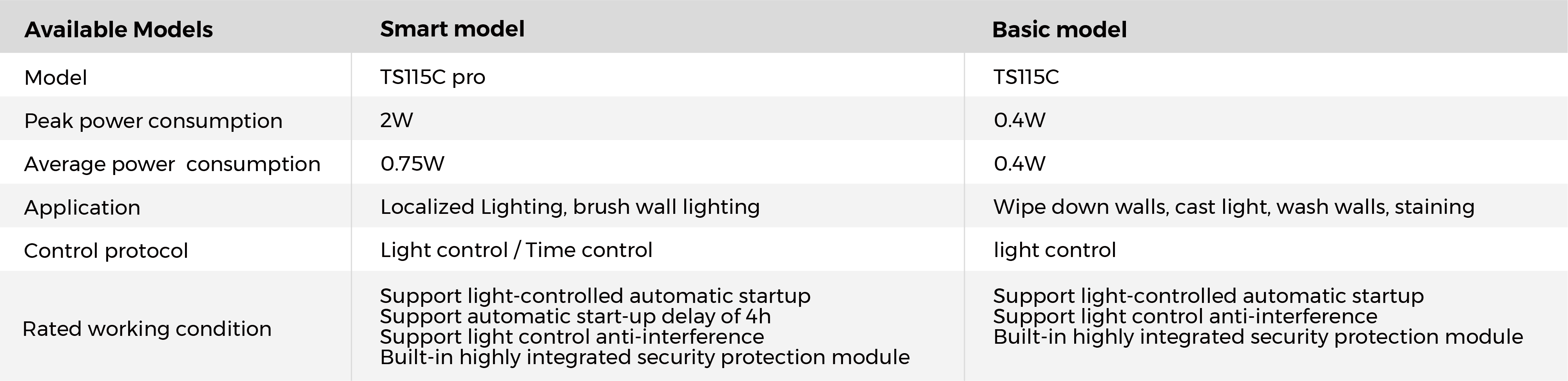

Available Models
