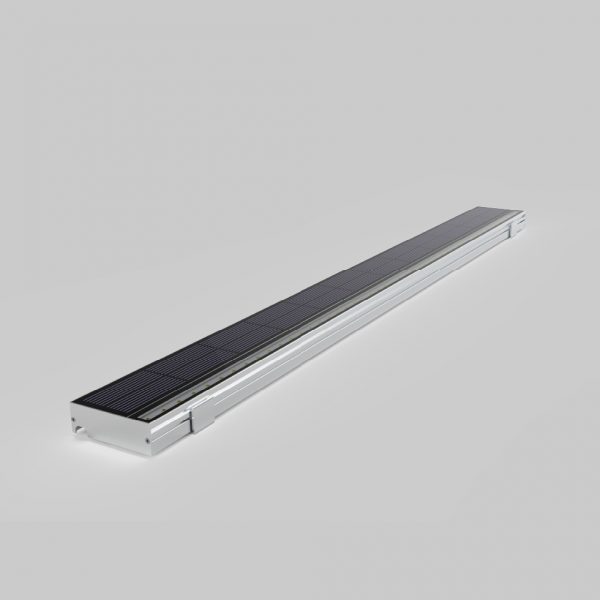

EXC-TU90A



  • Support adaptive time tracking extreme energy-saving technology, effectively extend the battery life
  • New high light efficiency optical system, high efficiency and high quality light output.
  • Optical control, wired DMX512, wireless Zigbee multiple control technology in one.
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • High-quality assembly process, outdoor multi-scene all-weather applications
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design.
  • Simple straight-lock installation design, flexible and convenient application.
Basic Specifications

Peak power consumption: 12W
Average power consumption: 4W
Light source: 48 x LED
Color: 2200-6500K/RGB
Light output: 2200-6500K/RGB
Photovoltaic battery specifications: 10W monocrystalline silicon
Energy storage battery specifications: 9000mAh LFP
Rated charging time: 5-6 h
Rated maximum endurance: 7-8h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 2 rainy days
Control : Light Control/ Wired DMX512 / Wireless Zigbee
Material: AL、PC、Glass

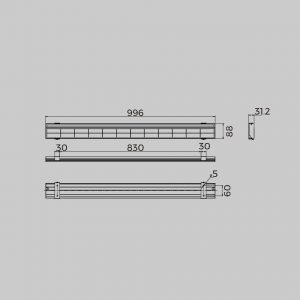

Size: L*W*H:996*88*31.2mm
IP Rating: IP65
Weight: 1.8kg
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)
Application: Full-color media façade display, maximum 4 points / m (north of 24 ° north latitude, can meet the application of the east-west façade of the building, not more than 150 meters of the building), profile mounting

Resources
Optional Parameters

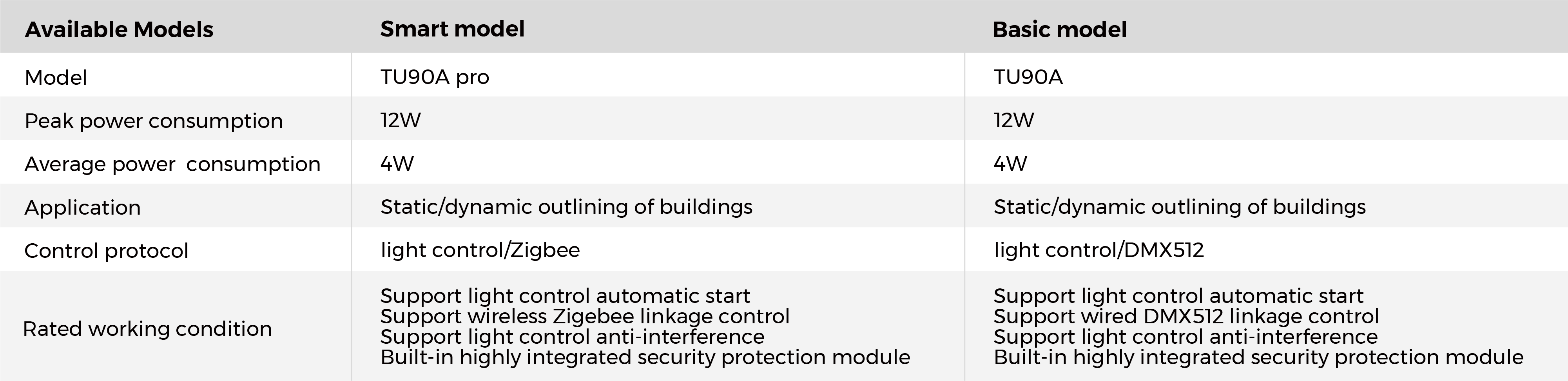

Available Models
