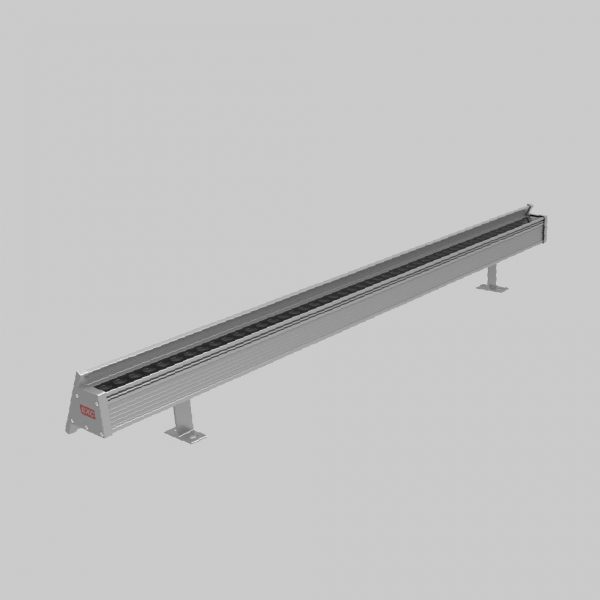

EXC-TW70A



  • Industry-leading photovoltaic charging efficiency enhancement technology to maximize the use of solar energy
  • Intelligent power control
  • Optical control, wired DMX512, wireless Zigbee multiple control technologies in one highly efficient monocrystalline silicon photovoltaic modules, efficient and safe lithium iron phosphate battery hardware design
  • Professional photovoltaic system with high-quality assembly process
  • Built-in highly integrated multi-dimensional security protection design, support for light control anti-interference
  • Simple rotating bracket installation design, flexible and convenient application
Basic Specifications

Peak power consumption: 12W
Average power consumption: 4W
Light source: 48 x LED
Color: 2200-6500K/RGB
Light output: W≥75lm/w,RGB≥25lm/w
Photovoltaic battery specifications: 10W monocrystalline silicon
Energy storage battery specifications: 9000mAh LFP
Rated charging time: 5-6 h
Rated maximum endurance: 7-8h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 2 rainy days
Control : Light Control/ Wired DMX512 / Wireless Zigbee
Material: AL、PC、Glass

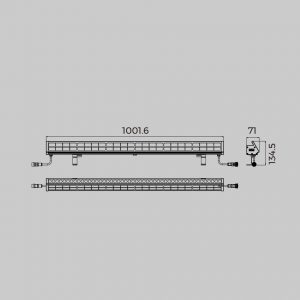

Size: L*W*H:1001.6*71*134.5mm
IP Rating: IP65
Weight: 2.75kg
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)

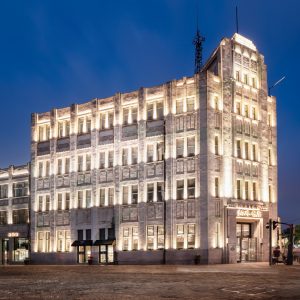

Application: Architectural, Bridge Wash Staining (can accommodate applications on south facing elevations of buildings), Bracket Mounting

Resources
Optional Parameters

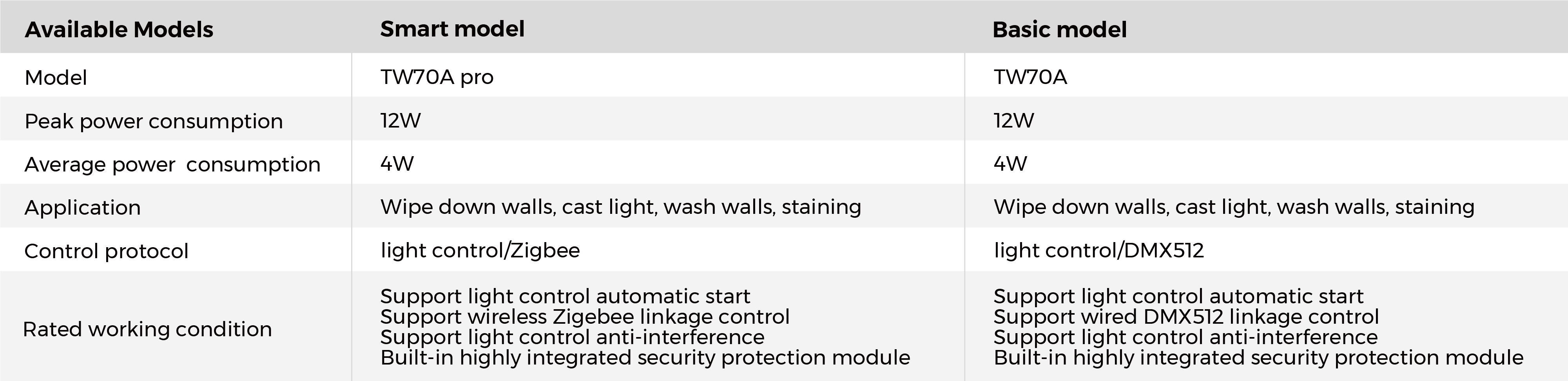

Available Models
