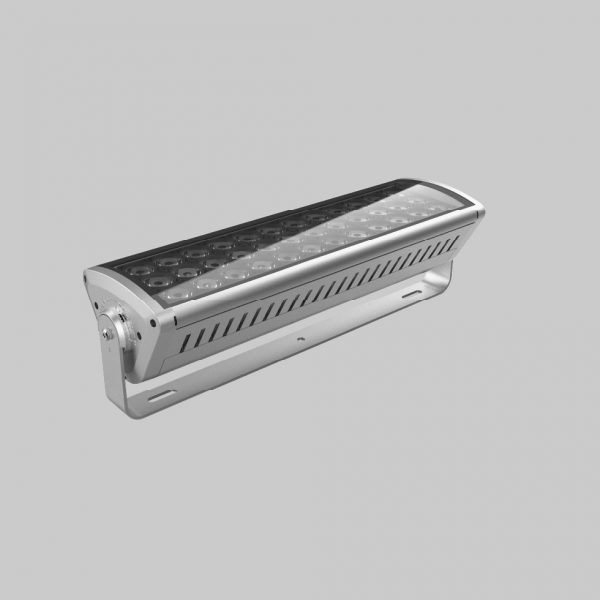

EXC-B175ABH-WL

Small power flood light, multiple power ranges are available;
Dimming change support fade in and out low glow without jitter;
Support color calibration function, wide color gamut (2.16 times the color gamut of the display), good color mixing effect, bright and pure colors. Color temperature 1800-6500K smooth adjustment, high color rendering index, R9 value, display index and R9 are ≥ 90. 16Bit grayscale dimming;
16Bit gray scale dimming, smooth and natural transition of gray scale and light color;
RDM control function, the world's unique identity code (UID);
Powerful control function, support multi-channel mode + total dimming + strobe + smooth color temperature curve + custom channel function.

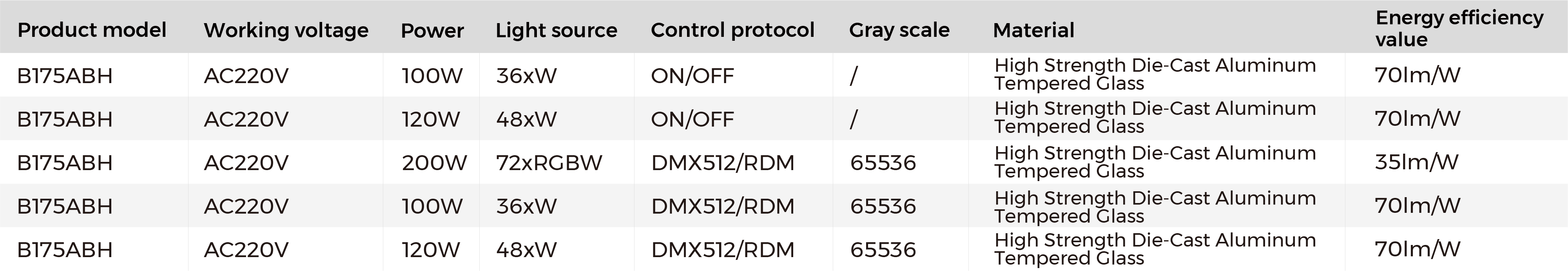

Basic Specifications

Operating Voltage：AC220V
Max Power:200W
Color:RGBW(1800-6500K)
Light Source:SMD / R+G+B+W LED
Material：High-strength aluminum alloy/Tempered glass
Weight：6.68Kg
Life：35000h
IP Rating：IP66
Application Environment：Outdoor

Resources

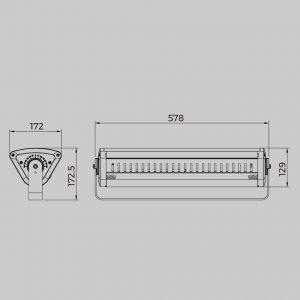

Specification IES File CAD Drawing

Optional Parameters

Control protocol

DMX512

RDM

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
