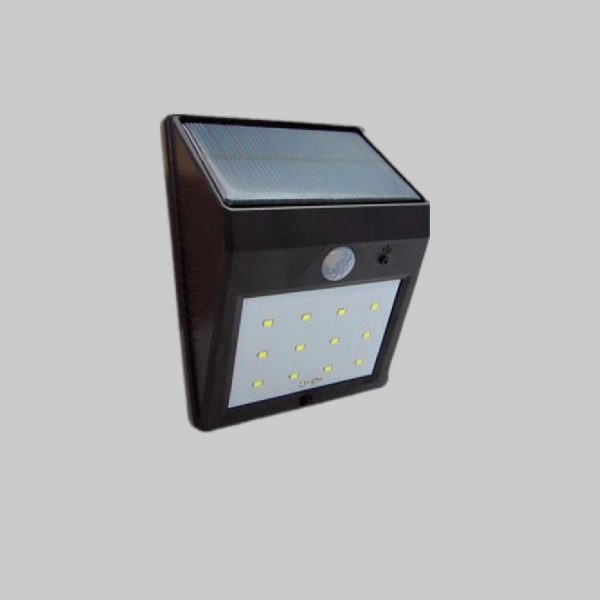

EXC-TWF125A

  • Support adaptive time tracking extreme energy-saving technology, effectively extend the battery life
  • New high light efficiency optical system, high efficiency and high quality light output.
  • Support light control, time control scene adaptive intelligent applications
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • High-quality assembly process, outdoor multi-scene all-weather applications
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design.
  • Simple fixed surface mounting structure design, flexible and convenient application.
Basic Specifications

Peak power consumption: 0.3 W
Average power consumption: 0.1W
Light Source: 20 x LED
Color: 2200~6500K
Light output: W≥75lm/w
Photovoltaic battery specifications: 0.65W monocrystalline silicon
Energy storage battery specifications: 800mAh LFP
Rated charging time: 6h
Rated maximum endurance: 27-28h
Rated rainy day resistance: single-day work 10h, can withstand ≥ 3 rainy days
Control mode: Light Control/Human Sensing
Material: ABS、PC、PET

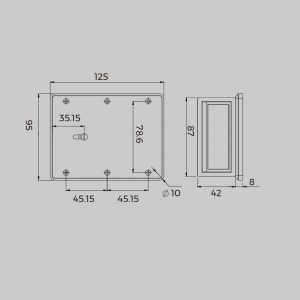

Size:L*W*H: 125*95*51mm
IP Rating: IP54
Weight: /
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥5000h

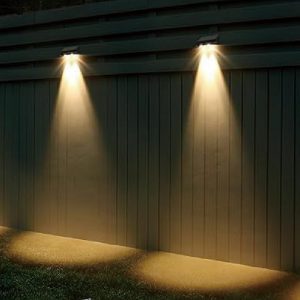

Applications : Partial floodlighting, surface mounted

Resources
Optional Parameters

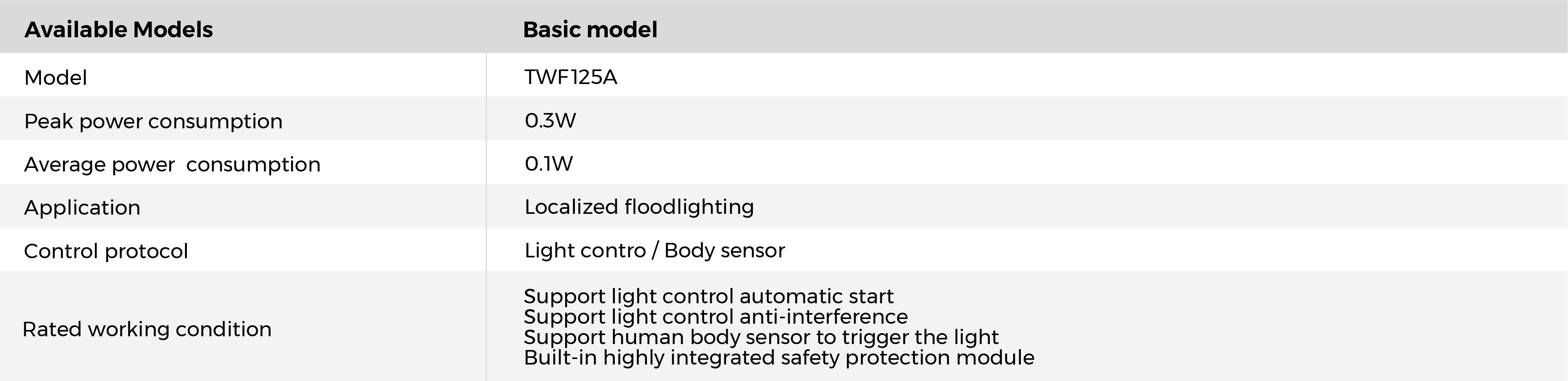

Available Models

Installation Methods
