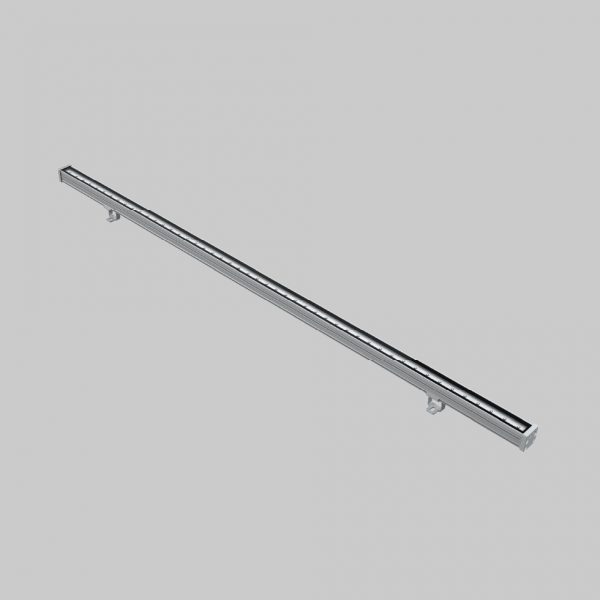

EXC-U25FCB0

The whole structure is waterproof, and the waterproof grade reaches IP66, which improves the reliability and stability of the equipment.
Effectively resist the intrusion of rain, water vapor, etc., to ensure the normal operation of the equipment in a variety of harsh environments.
New-generation DMX512/RDM parallel bus technology
Supports RDM and DMX512 large data traffic expansion.
17K high refresh rate, no strobe for cell phone shooting.
Support low brightness and high brightness, reduce the brightness without loss of the glow level
Support ultra-long-distance power supply options
Outdoor lightning and electrostatic discharge (ESD) special protection design

Basic Specifications

Operating Voltage: DC24V
Max Power: 15W
Color: W / RGB / RGBW
Light Source: SMD W / RGB 3in1 / RGBW 4in1 LED
Material: High-strength aluminum alloy / Glass Lampshade
Weight: 0.65Kg
Life: 50,000 hours
IP Rating: IP66
Application Environment: Outdoor

Resources

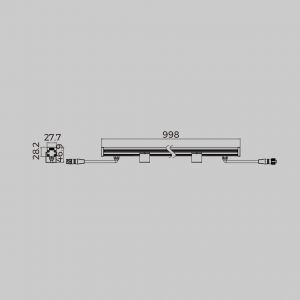

Specification IES File CAD Drawing

Optional Parameters

Power

12W

15W

Color

w

RGB

RGBW

Control protocol

DMX512

ON/OFF

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear
