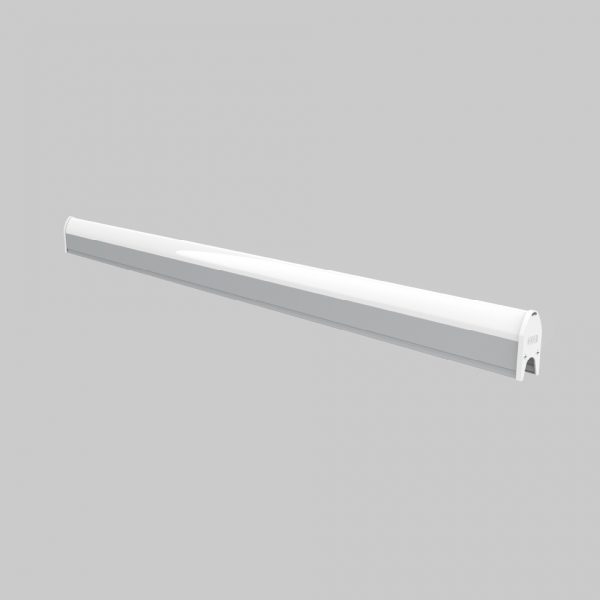

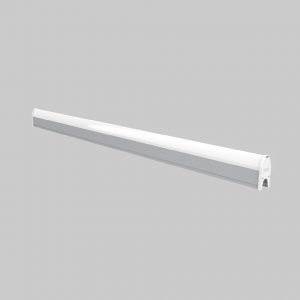

EXC-U28NAB0

High light transmittance anti-aging even light PC cover, soft and pleasant light, bringing a comfortable visual experience
New generation DMX512/RDM parallel bus technology
Support RDM and DMX512 large data flow expansion
17K high refresh rate, mobile phone shooting without flicker
Support low brightness high luminance, reduce brightness without loss of luminance level
Support ultra-long distance power supply optional
Outdoor lightning protection and electrostatic (ESD) special protection design
German imported high thermal conductivity glue full potting waterproof design

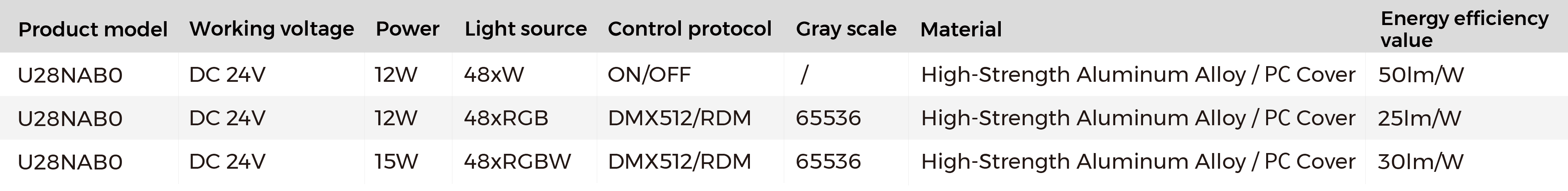

Basic Specifications

Operating Voltage: DC24V
Max Power: 15W (24V) / 12W (48V)
Color: W / RGB / RGBW
Light Source: SMD W / RGB 3in1 / RGBW 4in1 LED
Material: High-strength aluminum alloy / PC lampshade
Weight: 0.75Kg
Life: 50,000 hours
IP Rating: IP66

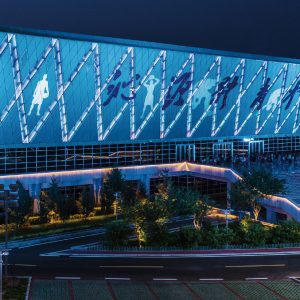

Application Environment: Outdoor

Resources

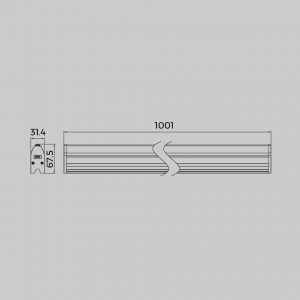

Specification IES File CAD Drawing

Optional Parameters

Power

12W

15W

Voltage

DC24V

DC48V

Color

w

RGB

RGB+W

Control protocol

DMX512

ON/OFF

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear
